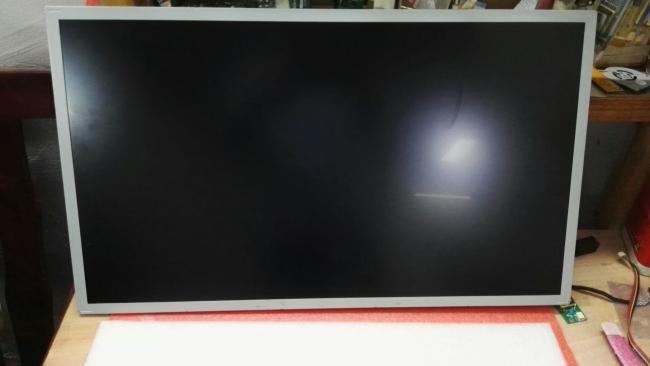

LM270WR9-SSZ1 LG Display 27.0" 3840(RGB)×2160, UHD 163PPI 400 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LM270WR9-SSZ1 Application Details
| Basic Detail : | Manufacturer | Model Name | LM270WR9-SSZ1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM270WR9 (SS)(Z1) | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
LG Display LM270WR9-SSZ1 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 94% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 96% coverage | |
| Rec.2020 | 70% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM270WR9-SSZ1 Mechanical Details
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0518×0.1554 mm | Pixel Pitch(W×H) | 0.1554×0.1554 mm [163PPI] | |
| Physical Size : | Active Viewing | 596.736(W)×335.664(H) mm | Overall Dim. | 608.8(W)×355.3(H) mm |
| Bezel Opening | - | Overall Depth | 9.7/15.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 3-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 2.28/2.40Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM270WR9-SSZ1 Interface Details
| Signal Electrical : | Input Current | 410/513mA (Typ./Max.) | Input Voltage | 10V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.1/5.13W (Typ./Max.) | Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-031A | |
LG Display LM270WR9-SSZ1 Lightting Details
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 19S4P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 95/100mA (Typ./Max.) | Input Voltage | 55.7±3.8V | ||
| Consumption | 21.2/22.6W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.3(H)×15.3(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.28/2.40Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WR9-SSZ1 can provides 400 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WR9-SSZ1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10V (Typ.)
