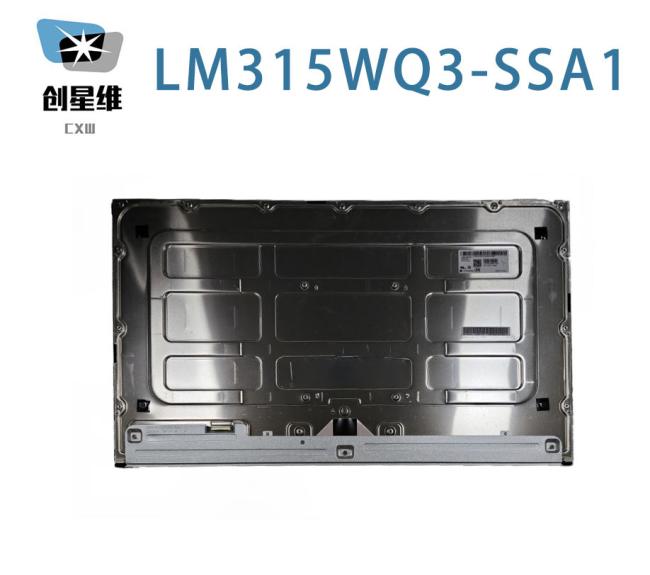

LM315WQ3-SSA1 LG Display 32.0" 2560(RGB)×1440, 450 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LM315WQ3-SSA1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM315WQ3-SSA1 | a-Si TFT-LCD , LCM | LM315WQ3 (SS)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM315WQ3-SSA1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 4 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 97% | 100% | 89% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 96% | 73% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
LG Display LM315WQ3-SSA1 Mechanical Features
| Panel Size : | 32.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1440 [Quad-HD] | RGB Vertical Stripe | 0.2724×0.2724 [93PPI] | 0.0908×0.2724 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 697.344(H) × 392.256(V) | - | 709.15(H) × 417.75(V) | 10.9/18.25 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | 3-side borderless | |
| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.15Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
LG Display LM315WQ3-SSA1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6 strings × 2CN | 6 strings × 2CN | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 17.7±1.2V | 103/180mA (Typ./Max.) | 27.3/29.2W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 10035WS-H10D | 1.0 mm | 10 pins | 2 pcs | BLE-10PINS-CCCCAACCCC | |
LG Display LM315WQ3-SSA1 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 790/987mA (Typ./Max.) | 7.9/9.9W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (8 Lanes), HBR2 (5.4G/lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20525-060E-01 | 0.4 mm | 60 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.344(W)×392.256(H) mm, outline size of 709.15(W)×417.75(H)×18.25(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.15Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM315WQ3-SSA1 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 4 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted 6 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WQ3-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.)
