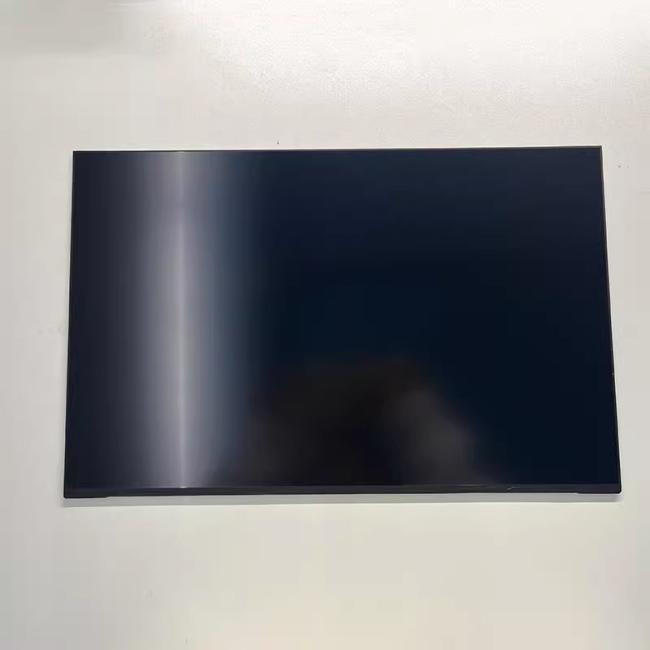

B160UAN01.L AUO 16.0" 1920(RGB)×1200, WUXGA 141PPI 89/89/89/89 (Max.)(CR≥10) INDUSTRIAL LCD DISPLAY
AUO B160UAN01.L Application Details
| Basic Detail : | Manufacturer | Model Name | B160UAN01.L | |
|---|---|---|---|---|
| Panel Type | LTPS TFT-LCD , LCM | Another Name | - | |
| Panel Size | 16.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
AUO B160UAN01.L Optical Details
| Basic Information : | Luminance | - | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Max.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) |
AUO B160UAN01.L Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05984×0.17952 mm | Pixel Pitch(W×H) | 0.17952×0.17952 mm [141PPI] | |
| Physical Size : | Active Viewing | 344.68(W)×215.42(H) mm | Overall Dim. | 350.38(W)×226.17(H) mm |
| Bezel Opening | - | Overall Depth | 2.45/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | - | Surface | Hard coating (3H) |
AUO B160UAN01.L Interface Details
| Signal Electrical : | Input Current | 150mA (Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.45W (Max.) | Signal Interface | eDP (2 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P30M | 1 pcs | 0.5 mm | 30 pins | ||
AUO B160UAN01.L Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.68(W)×215.42(H) mm, outline size of 350.38(W)×226.17(H)×2.6(D) mm, with surface treament of Hard coating (3H), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B160UAN01.L can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Max.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B160UAN01.L utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
