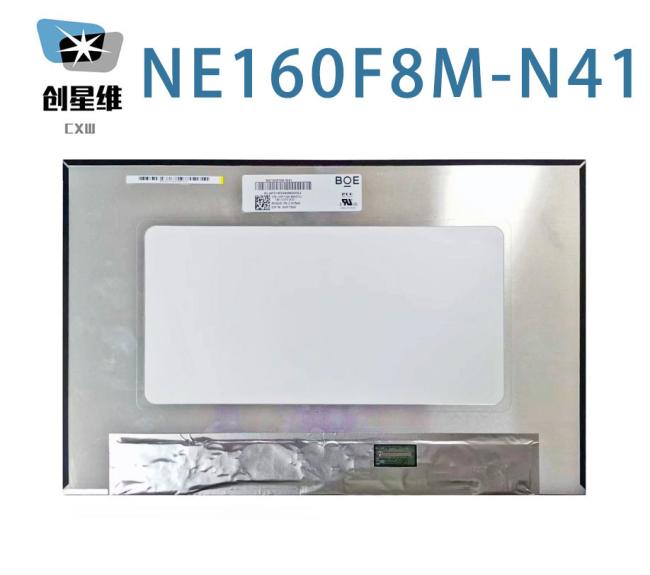

NE160F8M-N41 BOE 16.0" 3072(RGB)×1920 226PPI 300 cd/m² INDUSTRIAL LCD DISPLAY
BOE NE160F8M-N41 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NE160F8M-N41 | Oxide TFT-LCD , LCM | BOE095D | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
BOE NE160F8M-N41 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AHVA, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 77% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.54 (Max.)(5/13 points | ||
BOE NE160F8M-N41 Mechanical Features
| Panel Size : | 16.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3072(RGB)×1920 | RGB Vertical Stripe | 0.1122×0.1122 [226PPI] | 0.0374×0.1122 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 344.678(H) × 215.424(V) | - | 349.68(H) × 226.12(V) | 2.85/5.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Slim (PCBA Bent, T≤3.0mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 380g (Max.) | - | Antiglare (Haze 25%), Hard coating (2H) | ||
BOE NE160F8M-N41 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 11S6P | 6 strings | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 208mA (Typ.) | 2.5W (Max.) | ||||
BOE NE160F8M-N41 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 236/349mA (Typ./Max.) | 0.78/1.3W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes), eDP1.4a, HBR2 (5.4G/lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20682-040E | 0.4 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×226.12(H)×5.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (2H), net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, NE160F8M-N41 can provides 300 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE160F8M-N41 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
