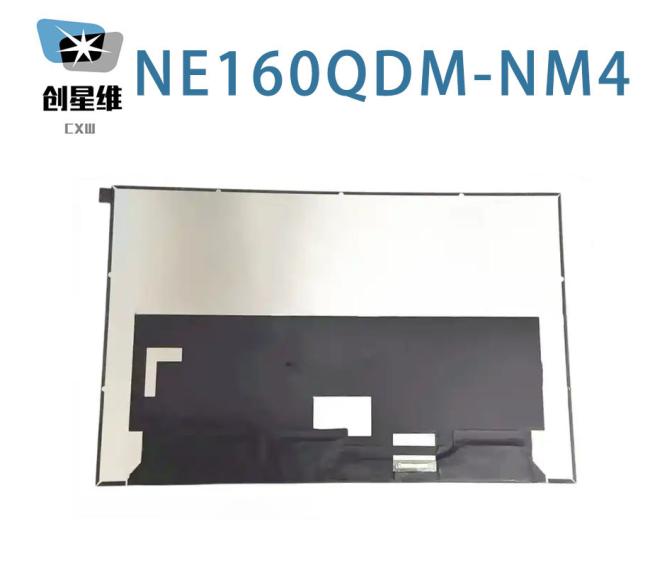

NE160QDM-NM4 BOE 16.0" 2560(RGB)×1600, 1250 cd/m² INDUSTRIAL LCD DISPLAY
BOE NE160QDM-NM4 Application Details
| Basic Detail : | Manufacturer | Model Name | NE160QDM-NM4 | |
|---|---|---|---|---|
| Panel Type | Oxide TFT-LCD , LCM | Another Name | BOE0BC4 | |
| Panel Size | 16.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
BOE NE160QDM-NM4 Optical Details
| Basic Information : | Luminance | 1250 cd/m² (Typ.), HDR1000 | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 9 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.06B (8-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 100% coverage | |
| Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
BOE NE160QDM-NM4 Mechanical Details
| Pixel Features : | Number of Pixel | 2560(RGB)×1600 [WQXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.04488×0.13464 mm | Pixel Pitch(W×H) | 0.13464×0.13464 mm [188PPI] | |
| Physical Size : | Active Viewing | 344.678(W)×215.424(H) mm | Overall Dim. | 349.68(W)×224.42(H) mm |
| Bezel Opening | - | Overall Depth | 2.45/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 430g (Max.) | Surface | Antiglare, Hard coating (3H) |
BOE NE160QDM-NM4 Interface Details
| Signal Electrical : | Input Current | 1.2A (Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.6W (Max.) | Signal Interface | eDP (4 Lanes), eDP1.4b, HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P40 | 1 pcs | 0.5 mm | 40 pins | ||
BOE NE160QDM-NM4 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | Mini LED | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 1.19/2.08A (Min./Max.) | Input Voltage | 15/21V (Min./Max.) | ||
| Consumption | 31W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 430g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE160QDM-NM4 can provides 1250 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (DCI-P3). This product adopted Mini LED as it's backlight systerm which was placed as Direct light type and have a working life time of 15K hours, With LED Driver. NE160QDM-NM4 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
