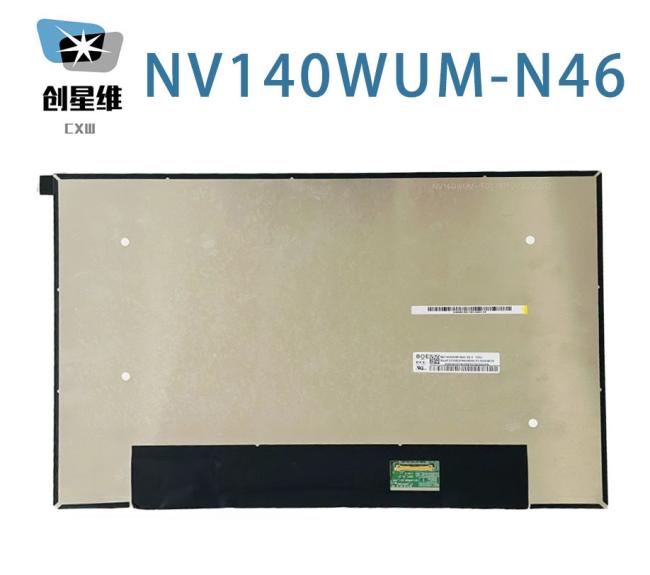

NV140WUM-N46 BOE 14.0" 1920(RGB)×1200, WUXGA 161PPI 250 cd/m² INDUSTRIAL LCD DISPLAY
BOE NV140WUM-N46 Application Details
| Basic Information : | Brand | Model | NV140WUM-N46 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | BOE0AAF | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
BOE NV140WUM-N46 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.05236×0.15708 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.15708×0.15708 (H×V) [161PPI] | |
| Mechanical Size : | Active Area(mm) | 301.594(H) × 188.496(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 307.29(H) × 199.25(V) | Depth(mm) | 3.0/5.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 300g (Max.) | Treatment | Antiglare, Hard coating (3H) |
BOE NV140WUM-N46 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | HADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 20 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 46% | sRGB | 63% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV140WUM-N46 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 212mA (Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.7W (Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| W05030-30P-H | 1 pcs | 30 pins | EDP-30P2L-020V | |||
BOE NV140WUM-N46 Backlight Details
| Backlight Features: | Shape | 5 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S5P | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 220.8mA (Max.) | ||
| Consumption | 2.65W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 307.29(W)×199.25(H)×5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a HADS, Normally Black, Transmissive LCM product, NV140WUM-N46 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 9S5P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140WUM-N46 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
