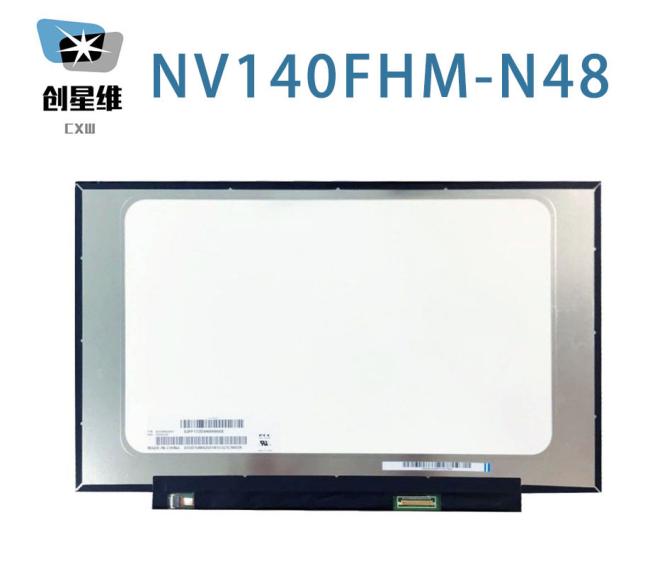

NV140FHM-N48 BOE 14.0" 1920(RGB)×1080, FHD 157PPI 250 cd/m² INDUSTRIAL LCD DISPLAY
BOE NV140FHM-N48 Application Details
| Basic Information : | Brand | Model | NV140FHM-N48 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | BOE06F2 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
BOE NV140FHM-N48 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0537×0.1611 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1611×0.1611 (H×V) [157PPI] | |
| Mechanical Size : | Active Area(mm) | 309.31(H) × 173.99(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 315.9(H) × 197.57(V) | Depth(mm) | 2.8/3.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 280g (Max.) | Treatment | |
BOE NV140FHM-N48 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | HADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Typ.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 63% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV140FHM-N48 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 213mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.7/1.5W (Typ./Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSAK24025P30 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020T | |
BOE NV140FHM-N48 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S4P | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 2.37W (Typ.) | |||||
with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Rev.P0 which was released out on 11 6 2017, NV140FHM-N48 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.9(W)×197.57(H)×3(D) mm, net weight of 280g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a HADS, Normally Black, Transmissive LCM product, NV140FHM-N48 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140FHM-N48 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
