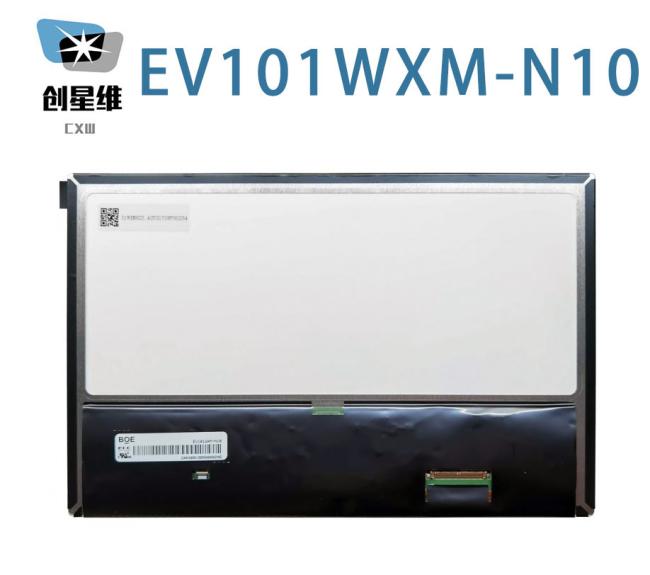

EV101WXM-N10 BOE 10.1" 1280(RGB)×800, 400 cd/m² INDUSTRIAL LCD DISPLAY
BOE EV101WXM-N10 Application Details
| Basic Detail : | Manufacturer | Model Name | EV101WXM-N10 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 70 °C |
BOE EV101WXM-N10 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 48% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE EV101WXM-N10 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0565×0.1695 mm | Pixel Pitch(W×H) | 0.1695×0.1695 mm [149PPI] | |
| Physical Size : | Active Viewing | 216.96(W)×135.6(H) mm | Overall Dim. | 228.6(W)×149.2(H) mm |
| Bezel Opening | - | Overall Depth | 3.0/6.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 175±20g | Surface | |
BOE EV101WXM-N10 Interface Details
| Signal Electrical : | Input Current | 250/330mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.8/1.1W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P40G | 1 pcs | 0.5 mm | 40 pins | ||
BOE EV101WXM-N10 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 220/280mA (Typ./Max.) | Input Voltage | 12±0.5V | ||
| Consumption | 3.1W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.6(W)×149.2(H)×6(D) mm, net weight of 175±20g. As a ADS, Normally Black, Transmissive LCM product, EV101WXM-N10 can provides 400 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. EV101WXM-N10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
