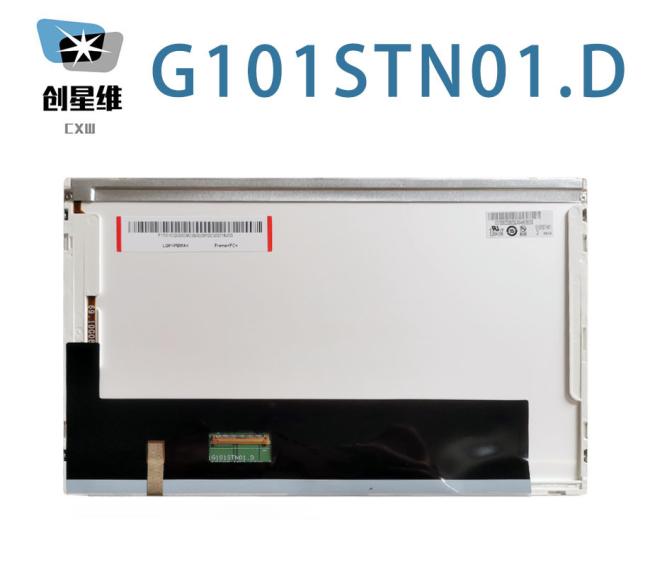

G101STN01.D AUO 10.1" 1024(RGB)×600, 450 cd/m² INDUSTRIAL LCD DISPLAY
AUO G101STN01.D Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G101STN01.D | a-Si TFT-LCD , LCM | AUO10D2 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 60 °C | -30 ~ 70 °C |
AUO G101STN01.D Mechanical Features
| Panel Size : | 10.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.0725×0.2088 mm | 0.2175×0.2088 mm [117PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 222.72×125.28 mm | 226.43×128.1 mm | 235×143 mm | 4.9±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 180g (Typ.) | Antiglare, Hard coating (3H) | ||
AUO G101STN01.D Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/60/60 (Typ.)(CR≥10) | - | 7/9 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(5 points | ||
AUO G101STN01.D Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 140/160mA (Typ./Max.) | 3.3V (Typ.) | 0.46/0.53W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6/8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-12R | 1 pcs | 0.5 mm | 40 pins | ||
AUO G101STN01.D Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 33.3mA (Typ.) | 31/34V (Typ./Max.) | 2.065/2.264W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 180/216mA (Typ./Max.) | 12.0±1.2V | 2.16/2.59W (Typ./Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×143(H)×5.2(D) mm, viewing area size of 226.43(W)×128.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 180g (Typ.). As a TN, Normally White, Transmissive LCM product, G101STN01.D can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 7/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G101STN01.D utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
