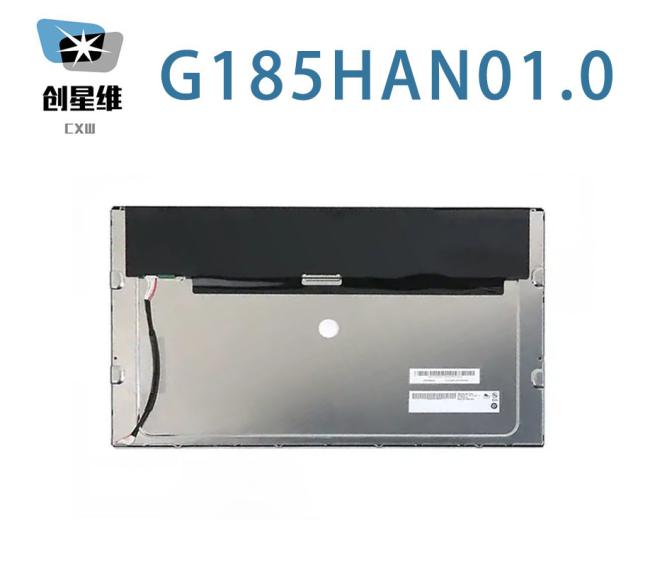

G185HAN01.0 AUO 18.5" 1920(RGB)×1080, 350 cd/m² INDUSTRIAL LCD DISPLAY
AUO G185HAN01.0 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G185HAN01.0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -20 ~ 70 °C |
AUO G185HAN01.0 Mechanical Features
| Panel Size : | 18.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 408.96×230.04 mm | 410.96×232.04 mm | 430.4×254.6 mm | 12.0±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.20Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
AUO G185HAN01.0 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 10/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7502K | 16.7M (8-bit) | X:0.299; Y:0.315 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 99% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
AUO G185HAN01.0 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.8/1.0A (Typ./Max.) | 5.0V (Typ.) | 4.0/5.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
AUO G185HAN01.0 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7 strings | 9S7P | 50K(Min.) | No | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 55mA (Typ.) | 28.8/32.4V (Typ./Max.) | 12.5W (Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 1.04A (Typ.) | 12.0±1.2V | 12.5/13.6W (Typ./Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.96(W)×230.04(H) mm, outline size of 430.4(W)×254.6(H)×12.5(D) mm, viewing area size of 410.96(W)×232.04(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.20Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G185HAN01.0 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 9S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G185HAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
