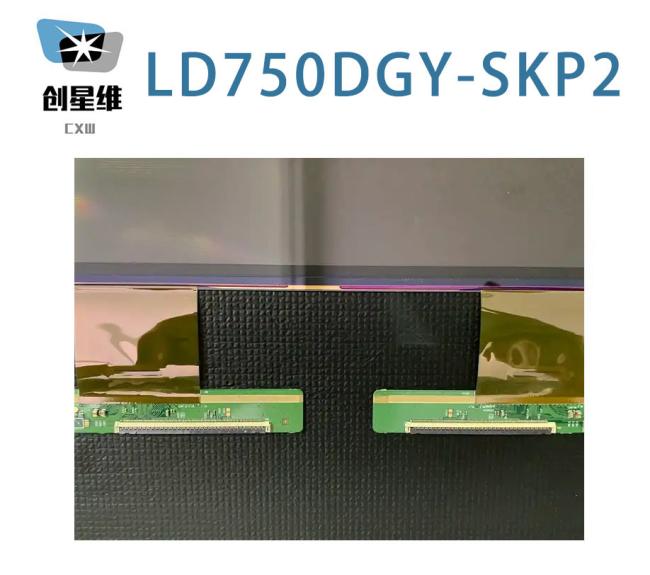

LD750DGY-SKP2 LG Display 75" 3840(3)×2160, 0 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LD750DGY-SKP2 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LD750DGY-SKP2 | a-Si TFT-LCD , CELL | LD750DGY (SK)(P2) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LD750DGY-SKP2 Mechanical Features
| Screen Size : | 75" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(3)×2160, UHD | RGBW Vertical Stripe | - | 0.4296×0.4296 mm [59PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1649.66×927.936 mm | - | 1665.66×944.73 mm | 1.40 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 4.00Kgs (Typ.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
LG Display LD750DGY-SKP2 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | IPS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 1.07B (8-bit + Dithering) | - | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 96% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmissivity : | 7.56% (Typ.)(with Polarizer) | ||
G Display LD750DGY-SKP2 Electronics Features
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COF Built-in 12 source chips |
LG Display LD750DGY-SKP2 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 1.49/1.93A (Typ./Max.) | 17.9/23.0W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| V-by-One 8 lane | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 20037WR-H05 | 1 pcs | 5 pins | 2.0 mm | ||
| JAE | FI-RXE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
whose pixels are arranged in RGBW Vertical Stripe. As for mechanical detail, it features active area of 1649.66(W)×927.936(H) mm, outline size of 1665.66(W)×944.73(H)×1.4(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), net weight of 4.00Kgs (Typ.). As a IPS, Normally Black, Transmissive CELL product, LD750DGY-SKP2 can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 69% (NTSC). This product have no backlight. LD750DGY-SKP2 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 56 pins Connector with power supply voltage of 12.0V (Typ.)
