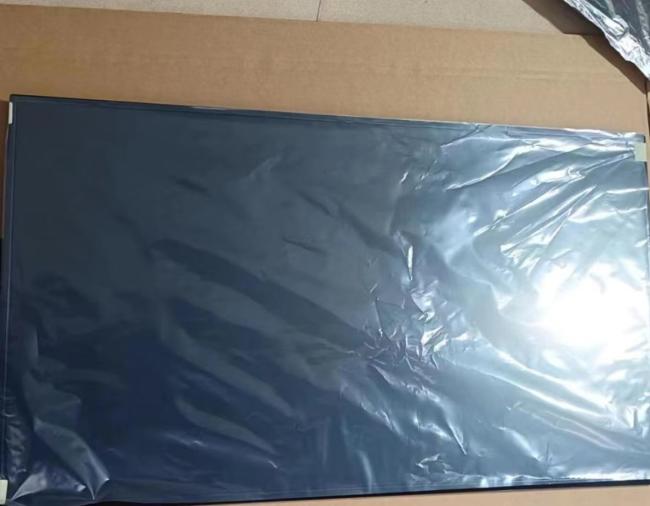

LD430EQE-FLA2 LG Display 43" 3840(RGB)×2160, 89/89/89/89 (Min.)(CR≥10) INDUSTRIAL LCD DISPLAY
LG Display LD430EQE-FLA2 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LD430EQE-FLA2 | a-Si TFT-LCD , LCM | LD430EQE (FL)(A2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LD430EQE-FLA2 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | 89/89/89/89 (Min.)(CR≥10) | 6 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 1.07B (8-bit + Dithering) |
LG Display LD430EQE-FLA2 Mechanical Features
| Panel Size : | 43" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.2451×0.2451 [103PPI] | 0.0817×0.2451 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 941.184(H) × 529.416(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
LG Display LD430EQE-FLA2 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 458/595mA (Typ./Max.) | 5.49/7.14W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | V-by-One 8 lane | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm. As a IPS, Normally Black, Transmissive LCM product, LD430EQE-FLA2 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LD430EQE-FLA2 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
