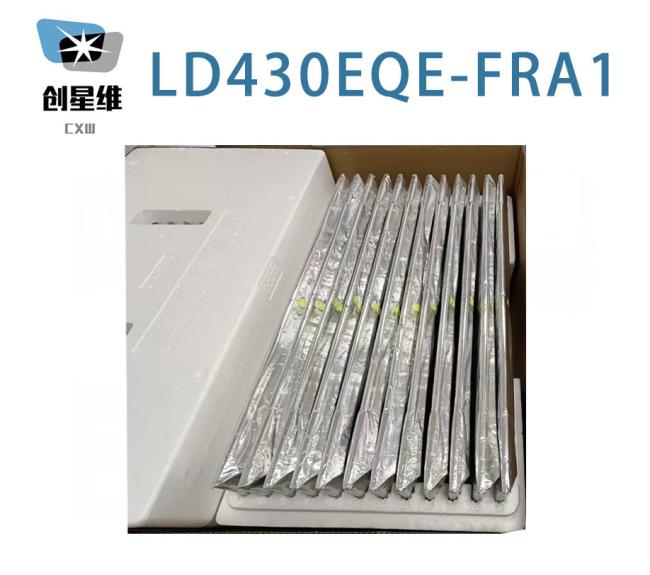

LD430EQE-FRA1 LG Display 43" 3840(RGB)×2160, 400 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LD430EQE-FRA1 Application Details
| Basic Information : | Brand | Model | LD430EQE-FRA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 43" | Alias | LD430EQE (FR)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LD430EQE-FRA1 Mechanical Details
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.0817×0.2451 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2451×0.2451 (H×V) [103PPI] | |
| Mechanical Size : | Active Area(mm) | 941.184(H) × 529.416(V) | Bezel Area(mm) | 946.2(H) × 534.4(V) |
| Outline Dim.(mm) | 962(H) × 554.8(V) | Depth(mm) | 18.3/34.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 8.3/8.7Kgs (Typ./Max.) | Treatment | Antiglare (Haze 28%), Hard coating (2H) |
LG Display LD430EQE-FRA1 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 6 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.279; Y:0.292 | Display Colors | 1.06B (8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LD430EQE-FRA1 Interface Details
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 490/640mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.88/7.64W (Typ./Max.) | |||||
| Signal Type : | V-by-One 8 lane | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
LG Display LD430EQE-FRA1 Backlight Details
| Backlight Features: | Shape | 3 strings × 2CN | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3 strings × 2CN | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 151.1/160.1/170.1V (Min./Typ./Max.) | Current Supply | 55mA (Typ.) | ||
| Consumption | 52.8/56.1W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | HS100-L08N-N62 | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-CCCNNNNA | |
| UJU | HS100-L08N-N62-A | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-ANNNNCCC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, outline size of 962(W)×554.8(H)×34.6(D) mm, viewing area size of 946.2(W)×534.4(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 8.3/8.7Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LD430EQE-FRA1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 74% (NTSC). This product adopted 3 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LD430EQE-FRA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
