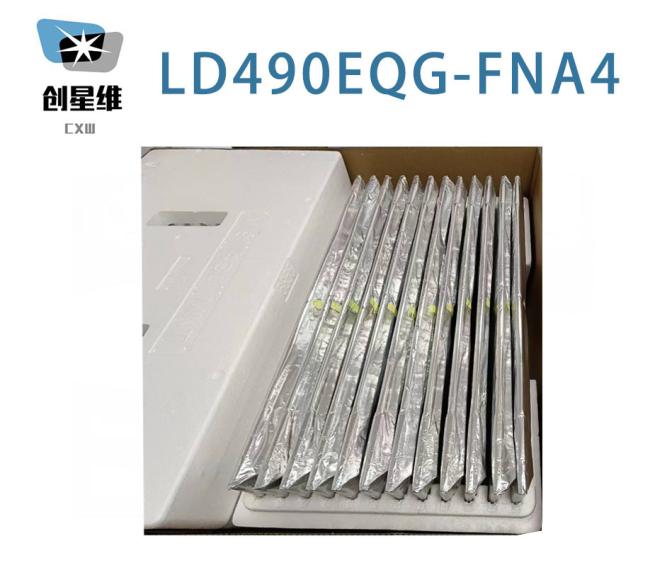

LD490EQG-FNA4 LG Display 49" 3840(RGB)×2160, 665 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LD490EQG-FNA4 Application Details
| Basic Information : | Brand | Model | LD490EQG-FNA4 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 49" | Alias | LD490EQG (FN)(A4) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LD490EQG-FNA4 Mechanical Details
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.09321×0.27963 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.27963×0.27963 (H×V) [90PPI] | |
| Mechanical Size : | Active Area(mm) | 1073.8(H) × 604(V) | Bezel Area(mm) | 1078.8(H) × 609(V) |
| Outline Dim.(mm) | 1098.6(H) × 633.3(V) | Depth(mm) | 19.4/27.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait | |
| Other Spec : | Weight | 12.0/13.2Kgs (Typ./Max.) | Treatment | Antiglare (Haze 28%), Hard coating (2H) |
LG Display LD490EQG-FNA4 Optical Details
| Basic Information : | Luminance(cd/m²) | 665 (Typ.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.279; Y:0.292 | Display Colors | 1.07B (10-bit) |
| Color Temperature | 9972K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 94% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LD490EQG-FNA4 Interface Details
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.13/1.47A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 13.6/27.5W (Typ./Max.) | |||||
| Signal Type : | EPI | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 2 pcs | 68 pins | |||||
LG Display LD490EQG-FNA4 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 132.4±6.6V | Current Supply | 100mA (Typ.) | ||
| Consumption | 75.5/79.2W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | HS100-L08N-N62 | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-CCCNNNNA | |
| UJU | HS100-L08N-N62-A | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-ANNNNCCC | |
| Backlight Driver : | NO | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1073.8(W)×604(H) mm, outline size of 1098.6(W)×633.3(H)×27(D) mm, viewing area size of 1078.8(W)×609(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 12.0/13.2Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LD490EQG-FNA4 can provides 665 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LD490EQG-FNA4 utilizes EPI as it's signal inputting systerm, which connected by 136 pins Connector with power supply voltage of 12.0V (Typ.).
