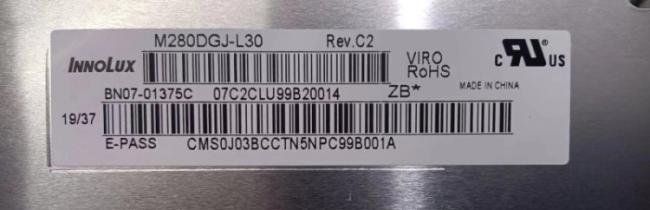

M280DGJ-L30 Innolux 28.0" 3840(RGB)×2160, 300 cd/m² INDUSTRIAL LCD DISPLA
Innolux M280DGJ-L30 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| M280DGJ-L30 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
Innolux M280DGJ-L30 Mechanical Features
| Screen Size : | 28.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.0539×0.158 mm | 0.1617×0.158 mm [157PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 620.93×341.28 mm | 626.93×347.28 mm | 648.9×369.3 mm | 12.13/20.85 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.91/3.10Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
Innolux M280DGJ-L30 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 85/85/80/80 (Typ.)(CR≥10) | 1.5/3.5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 95% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.42 (Max.)(9 points) | ||
Innolux M280DGJ-L30 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Left side) | 30K(Min.) | 4 strings | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 37.8/40.2V (Typ./Max.) | 150±9mA | 22.68/24.12W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| FCN | WM13-406-063N | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
Innolux M280DGJ-L30 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.6/0.73A (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| V-by-One 8 lane | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| FCN | WF23-402-5133 | 1 pcs | 51 pins | 0.5 mm | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 620.93(W)×341.28(H) mm, outline size of 648.9(W)×369.3(H)×20.85(D) mm, viewing area size of 626.93(W)×347.28(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.91/3.10Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M280DGJ-L30 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 1.5/3.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 30K hours, external backlight driver is additionally needed. M280DGJ-L30 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
