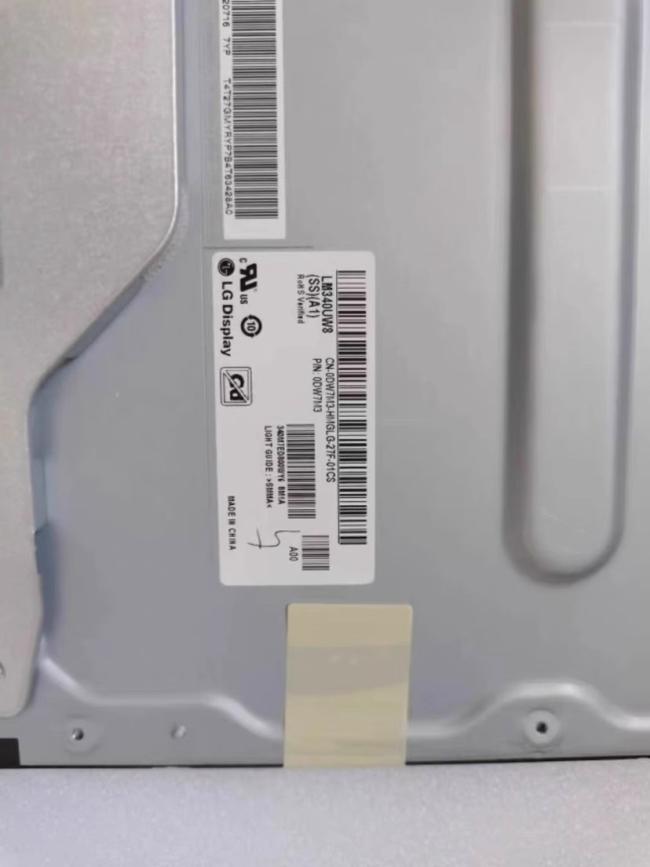

LM340UW8-SSA1 LG Display 34" 3440(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LM340UW8-SSA1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM340UW8-SSA1 | a-Si TFT-LCD , LCM | LM340UW8 (SS)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM340UW8-SSA1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 2000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 95% | 100% | 90% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 96% | 71% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
LG Display LM340UW8-SSA1 Mechanical Features
| Panel Size : | 34" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3440(RGB)×1440 | RGB Vertical Stripe | 0.2325×0.2325 [109PPI] | 0.0775×0.2535 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 799.8(H) × 334.8(V) | - | 809.55(H) × 354.7(V) | 16.7±1.0 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Curved Display, R1900 | Landscape type | 21:9 (H:V) | 3-side borderless | |
| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 4.56/4.78Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
LG Display LM340UW8-SSA1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 34.3±2.4V | 74/79mA (Typ./Max.) | 20.3/21.7W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | PH-12Y | 2.0 mm | 12 pins | 1 pcs | ||
LG Display LM340UW8-SSA1 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 650/820mA (Typ./Max.) | 6.5/8.2W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes), HBR2 (5.4G/lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | EDP-30P4L-031A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 799.8(W)×334.8(H) mm, outline size of 809.55(W)×354.7(H)×17.7(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 4.56/4.78Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM340UW8-SSA1 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM340UW8-SSA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.)
