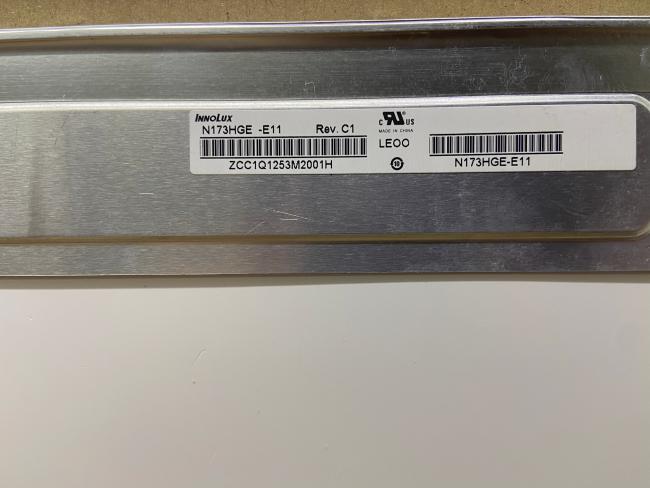

N173HGE-E11 Innolux 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
Innolux N173HGE-E11 Application Details
| Basic Information : | Brand | Model | N173HGE-E11 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.3" | Alias | CMN1735 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
Innolux N173HGE-E11 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0663×0.1989 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1989×0.1989 (H×V) [127PPI] | |
| Mechanical Size : | Active Area(mm) | 381.888(H) × 214.812(V) | Bezel Area(mm) | 386.18(H) × 218.85(V) |
| Outline Dim.(mm) | 398.1(H) × 232.8(V) | Depth(mm) | 5.5/5.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Spec : | Weight | 555/570g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
Innolux N173HGE-E11 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 2/6 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux N173HGE-E11 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 440/520mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.9W (Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.2 | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-12 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
Innolux N173HGE-E11 Backlight Details
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 11S6P | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 399/494/571mA (Min./Typ./Max.) | ||
| Consumption | 6.4W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 398.1(W)×232.8(H)×5.8(D) mm, viewing area size of 386.18(W)×218.85(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 555/570g (Typ./Max.), shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, N173HGE-E11 can provides 300 cd/m² display brightness 650:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N173HGE-E11 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
