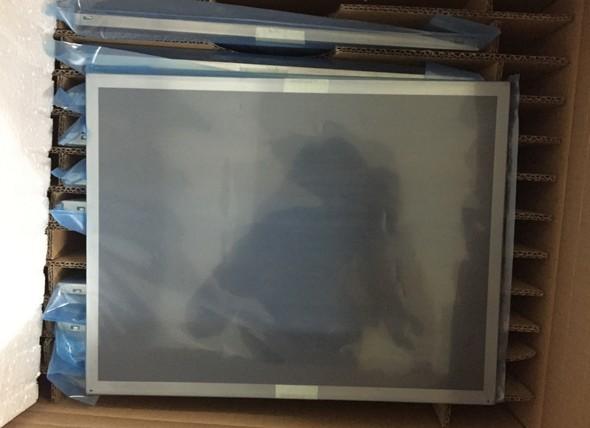

RV150U0M-N00 BOE 15.0" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY
BOE RV150U0M-N00 Application Details
| Basic Information : | Brand | Model | RV150U0M-N00 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
BOE RV150U0M-N00 Mechanical Details
| Pixel Features : | Resolution | 1600(RGB)×1200, UXGA | Dot Pitch(mm) | 0.0635×0.1905 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1905×0.1905 (H×V) [133PPI] | |
| Mechanical Size : | Active Area(mm) | 304.8(H) × 228.6(V) | Bezel Area(mm) | 307.2(H) × 231(V) |
| Outline Dim.(mm) | 317.4(H) × 242(V) | Depth(mm) | 5.9 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Spec : | Weight | 0.62±0.05Kgs | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
BOE RV150U0M-N00 Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.339 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6409K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 90% coverage |
| Adobe RGB | 70% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE RV150U0M-N00 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.5/1.2A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.5/3.0W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-02 | 1 pcs | 40 pins | 0.5 mm | ||
BOE RV150U0M-N00 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S4P | Life Time | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 9/12/28V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 9.6W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.8(W)×228.6(H) mm, outline size of 317.4(W)×242(H) mm, viewing area size of 307.2(W)×231(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 0.62±0.05Kgs. As a ADS, Normally Black, Transmissive LCM product, RV150U0M-N00 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. RV150U0M-N00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 5.0V (Typ.).
