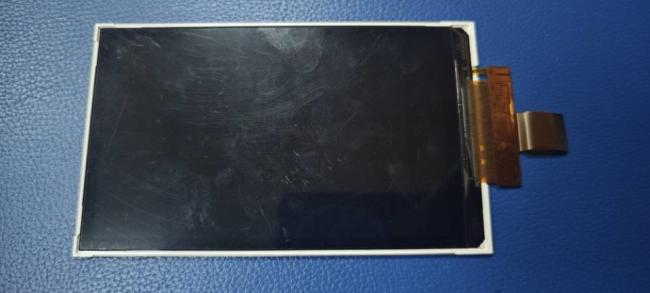

COM48H4N50ULC Ortustech 4.8" 720(RGB)×1280, 420 cd/m² INDUSTRIAL LCD DISPLAY
Ortustech COM48H4N50ULC Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| COM48H4N50ULC | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
Ortustech COM48H4N50ULC Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 420 (Typ.) | 80/80/80/80 (Min.)(CR≥10) | 40/60 (Max.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | VA, Normally Black, Transflective | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 16.7M (8-bit) | - | |
| White Variation : | 1.43 (Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | ||
Ortustech COM48H4N50ULC Mechanical Features
| Panel Size : | 4.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 720(RGB)×1280 [WXGA] | RGB Vertical Stripe | 0.0822×0.0822 [309PPI] | 0.0274×0.0822 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 59.184(H) × 105.216(V) | - | 64.58(H) × 115.41(V) | 2.05 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Hard coating (2H) | ||
Ortustech COM48H4N50ULC Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 9S1P | 1 string | 50K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 20.6/22.2/23.5V (Min./Typ./Max.) | 13/35mA (Typ./Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in signal interface | ||||
Ortustech COM48H4N50ULC Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.9/2.9V (Typ.)(IOVCC/VCC) | 13.6/28.5mA (Typ.)(IOICC/ICC) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (4 data lanes) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 27 pins | 1 pcs | ||||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 309 PPI. As for mechanical detail, it features active area of 59.184(W)×105.216(H) mm, outline size of 64.58(W)×115.41(H) mm, with surface treament of Hard coating (2H), net weight of TBD. As a VA, Normally Black, Transflective LCM product, COM48H4N50ULC can provides 420 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM48H4N50ULC utilizes MIPI (4 data lanes) as it's signal inputting systerm
