VVX21F144H00 Panasonic 21.3" 1600(RGB)×1200, 700 cd/m² INDUSTRIAL LCD DISPLAY
Panasonic VVX21F144H00 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| VVX21F144H00 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
Panasonic VVX21F144H00 Mechanical Features
| Panel Size : | 21.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 432×324 mm | 436.0×328.0 mm | 456×349.5 mm | 17.48/22.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.00Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
Panasonic VVX21F144H00 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 11/9 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7223K | 16.7M (8-bit) | X:0.298; Y:0.337 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 98% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||

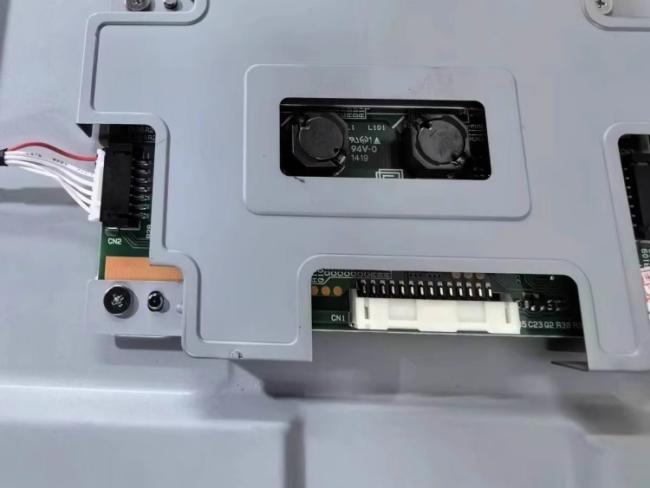

Panasonic VVX21F144H00 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.7/1.0A (Typ./Max.) | 5.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-X30SSLA-HF | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
Panasonic VVX21F144H00 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 5 strings × 2CN | 10S5P×2CN | 70K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 53/56mA (Typ./Max.) | 56.0/58.2/61.9V (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | PHR-10 | 2 pcs | 2.0 mm | 10 pins | BLE-10PINS-CNCCNNCCNA | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 432(W)×324(H) mm, outline size of 456(W)×349.5(H)×22.8(D) mm, viewing area size of 436.0(W)×328.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.00Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, VVX21F144H00 can provides 700 cd/m² display brightness 1400:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 76% (NTSC). This product adopted 10S5P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. VVX21F144H00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
