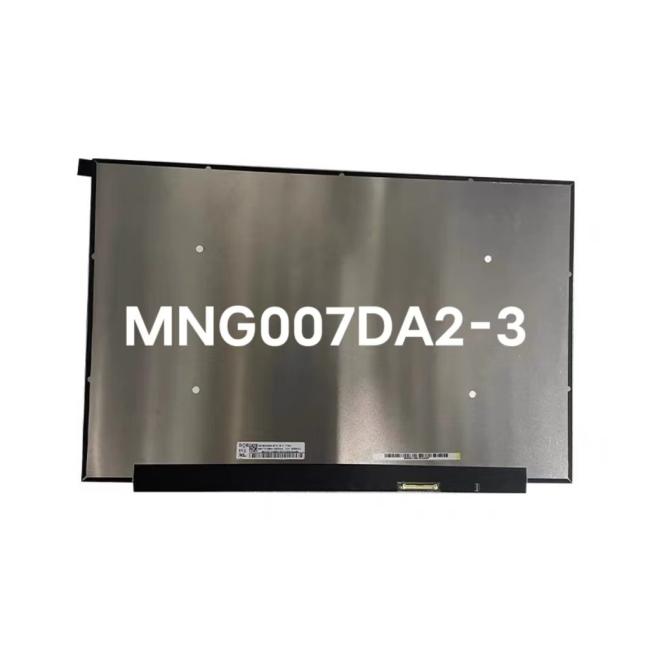

MNG007DA2-3 CSOT 16.0" 2560(RGB)×1600, 500 cd/m² INDUSTRIAL LCD DISPLAY
CSOT MNG007DA2-3 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| MNG007DA2-3 | LTPS TFT-LCD , LCM | CSO1628 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
CSOT MNG007DA2-3 Mechanical Features
| Panel Size : | 16.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2560(RGB)×1600, WQXGA | RGB Vertical Stripe | 0.04488×0.13464 mm | 0.13464×0.13464 mm [188PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.678×215.424 mm | - | 349.68×224.42 mm | 2.6/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 325g (Max.) | Antiglare, Hard coating (3H), Reflection 6.5% (Max.) | ||
CSOT MNG007DA2-3 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.), HDR400 | FFS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.67 (Max.)(5/13 points) | ||
CSOT MNG007DA2-3 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3V (Typ.) | 2.15W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (4 Lanes), eDP1.4 | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-66 | 1 pcs | 0.5 mm | 40 pins | ||
CSOT MNG007DA2-3 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6 strings | 12S6P | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 377/390mA (Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 4.52/4.68W (Typ./Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), Reflection 6.5% (Max.), net weight of 325g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a FFS, Normally Black, Transmissive LCM product, MNG007DA2-3 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 12S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. MNG007DA2-3 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
