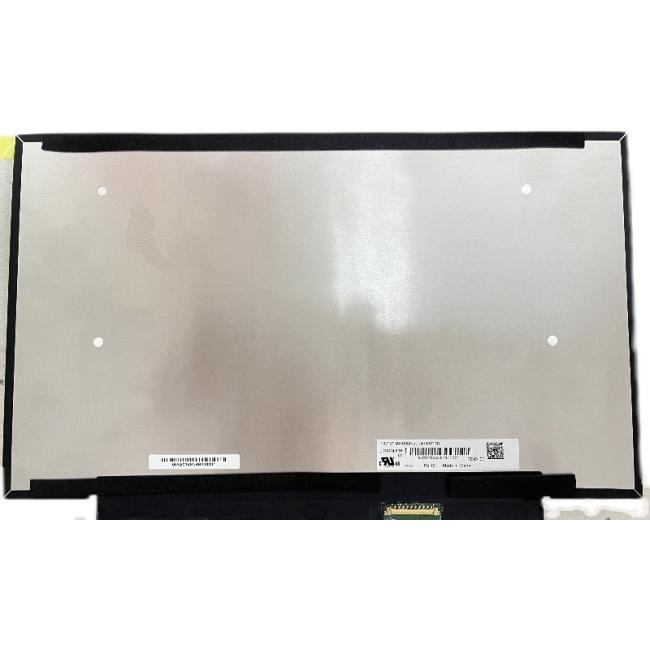

LP140WFB-SPF2 LG Display 14.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LP140WFB-SPF2 Application Details
| Basic Detail : | Manufacturer | Model Name | LP140WFB-SPF2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LP140WFB (SP)(F2) | |
| Panel Size | 14.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
LG Display LP140WFB-SPF2 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LP140WFB-SPF2 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0537×0.1611 mm | Pixel Pitch(W×H) | 0.1611×0.1611 mm [157PPI] | |
| Physical Size : | Active Viewing | 309.31(W)×173.99(H) mm | Overall Dim. | 315.81(W)×186.07(H) mm |
| Bezel Opening | - | Overall Depth | 2.85/5.25 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Touchscreen : | TP Controller | With controller | Control Signal | I²C |
| Touch Points | 10 points | TP Technology | In-Cell Touch | |
| Fixation : | Without | |||
| Other Detail : | Mass | 310g (Max.) | Surface | Antiglare, Hard coating (3H) |
LG Display LP140WFB-SPF2 Interface Details
| Signal Electrical : | Input Current | 270/297mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.89/0.98W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-40S-H10 | 1 pcs | 0.5 mm | 40 pins | ||
LG Display LP140WFB-SPF2 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 250/255mA (Typ./Max.) | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 3.00/3.05W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.81(W)×186.07(H)×5.25(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 310g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WFB-SPF2 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WFB-SPF2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.
