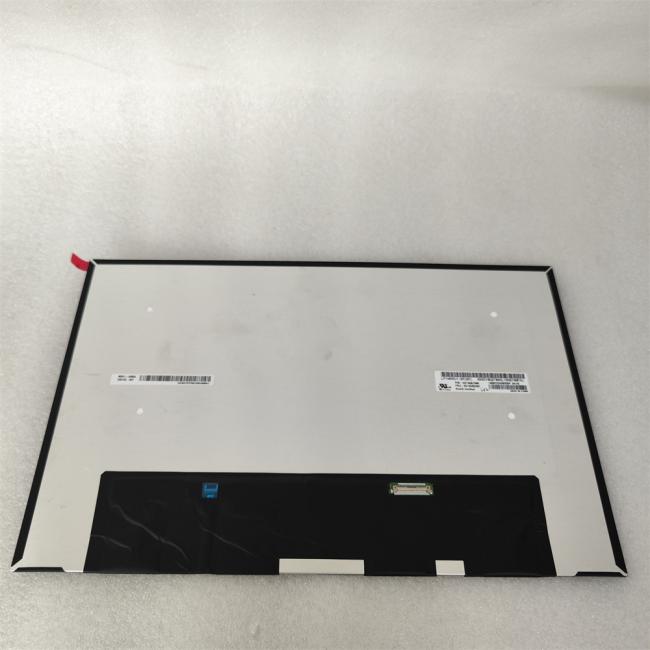

B140UAN02.1 AUO 14.0" 1920(RGB)×1200, 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2DAYS
Brand:
AUO
Product Description
AUO B140UAN02.1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| B140UAN02.1 | LTPS TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
AUO B140UAN02.1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | - | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AHVA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 16.7M (8-bit) |
AUO B140UAN02.1 Mechanical Features
| Panel Size : | 14.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1200 [WUXGA] | RGB Vertical Stripe | 0.15708×0.15708 [161PPI] | 0.05236×0.15708 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 301.594(H) × 188.496(V) | - | - | 2.4/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Slim (PCBA Bent, T≤3.0mm) | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 240g (Max.) | ||||
AUO B140UAN02.1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, net weight of 240g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B140UAN02.1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB)
