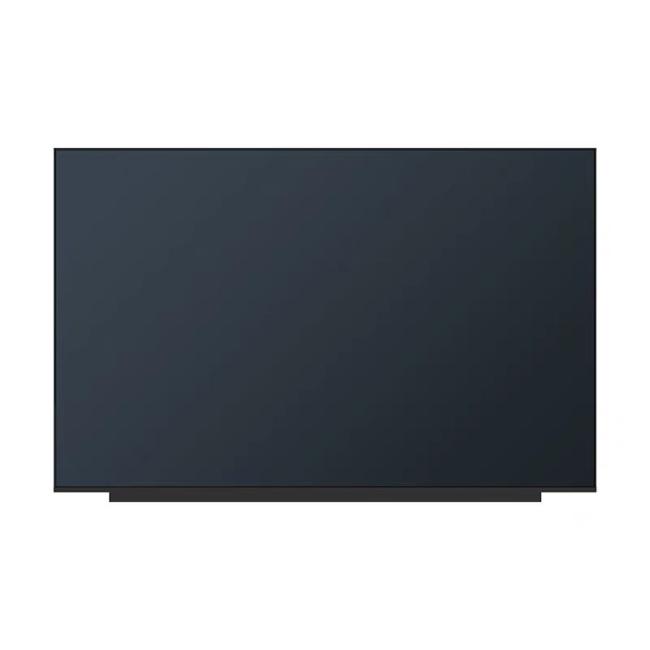

MNE007JA1-1 CSOT 14.0" 1920(RGB)×1200, 400 cd/m² INDUSTRIAL LCD DISPLAY
CSOT MNE007JA1-1 Application Details
| Basic Info : | Panel Brand | Panel Model | MNE007JA1-1 | |
|---|---|---|---|---|
| Diagonal Size | 14.0" | Application | ||
| Panel Type | LTPS TFT-LCD , LCM | Model Alias | CSO1404 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
CSOT MNE007JA1-1 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1200 [WUXGA] | Dot Pitch | 0.05236×0.15708 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.15708×0.15708 mm (H×V) [161PPI] | |
| Mechanical Size : | Display Area | 301.594×188.496 mm (H×V) | Bezel Area | - |
| Outline Dim. | 306.65×197.03 mm (H×V) | Outline Depth | 2.25/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 230g (Max.) | Surface | Antiglare, Hard coating (3H) |
CSOT MNE007JA1-1 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | FFS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 97% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
CSOT MNE007JA1-1 Backlight Details
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 10S6P | Position | Edge light type | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 175mA (Typ.) | ||
| Consumption | 2.1W (Max.) | |||||
CSOT MNE007JA1-1 Interface Details
| Signal Systerm : | eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 121mA (Max.) | ||
| Consumption | 400mW (Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-66 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.65(W)×197.03(H)×4.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 230g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a FFS, Normally Black, Transmissive LCM product, MNE007JA1-1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 96% (sRGB). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. MNE007JA1-1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
