MV270FHB-N20 BOE 27.0" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY
BOE MV270FHB-N20 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| MV270FHB-N20 | a-Si TFT-LCD , CELL | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
BOE MV270FHB-N20 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 0 | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 99% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 78% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmissivity : | 5.7% (Typ.)(with Polarizer) | ||
BOE MV270FHB-N20 Mechanical Features
| Panel Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.3114×0.3114 [81PPI] | 0.1038×0.3114 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 597.888(H) × 336.312(V) | - | 607.048(H) × 346.642(V) | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Plate Thickness |
| Flat Rectangle | Landscape type | 16:9 (H:V) | - | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 625g (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
BOE MV270FHB-N20 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 640/960mA (Typ./Max.) | 3.2/5.3W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 8-bit) | Connector | ||||

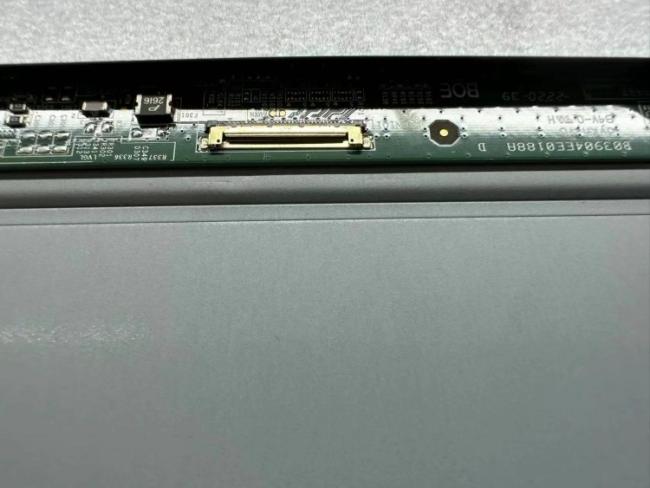

| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSBKT2407P30HC | 1.0 mm | 30 pins | 1 pcs | ||
BOE MV270FHB-N20 Electronics Features
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Driver IC : | COF Built-in 8 source chips |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.048(W)×346.642(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 625g (Typ.). As a ADS, Normally Black, Transmissive CELL product, MV270FHB-N20 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product have no backlight. MV270FHB-N20 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
