DV430FHB-N10 BOE 43" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY
BOE DV430FHB-N10 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| DV430FHB-N10 | a-Si TFT-LCD , CELL | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
BOE DV430FHB-N10 Mechanical Features
| Panel Size : | 43 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.16335×0.49005 mm | 0.49005×0.49005 mm [51PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 940.896×529.254 mm | - | 950.896×541.75 mm | 1.40 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 (W : H) | Landscape / Portrait | 0.50+0.50 mm | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.51Kgs (Typ.) | Antiglare (Haze 1%), Hard coating (3H) | ||
BOE DV430FHB-N10 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | ADS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 11506K | 16.7M (8-bit) | X:0.277; Y:0.274 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 98% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmittance : | 6.3% (Typ.)(with Polarizer) | ||
BOE DV430FHB-N10 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 500/950mA (Typ./Max.) | 12V (Typ.) | 6.0/11.4W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJC | PM.LVS.S040505101 | 1 pcs | 0.5 mm | 51 pins | ||
BOE DV430FHB-N10 Packing Features
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |

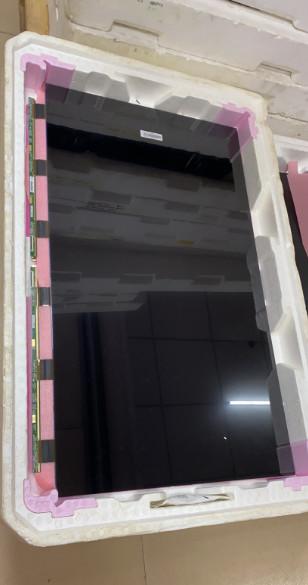

| EPO Box | 17 | 1 | 1100×705×127 | N/A | 0.0985 | |
| Pallet | 272 | 16 | N/A | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 940.896(W)×529.254(H) mm, outline size of 950.896(W)×541.75(H)×1.4(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 1.51Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, DV430FHB-N10 can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product have no backlight. DV430FHB-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12V (Typ.
