PN215CT01-1 HKC 21.5" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY
HKC PN215CT01-1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| PN215CT01-1 | a-Si TFT-LCD , CELL | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
HKC PN215CT01-1 Mechanical Features
| Panel Size : | 21.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.08275×0.24825 mm | 0.24825×0.24825 mm [102PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 476.64×268.11 mm | - | 487.44×278.182 mm | 1.36 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 (W : H) | Landscape type | 0.50+0.50 mm | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antiglare (Haze 25%), Hard coating (3H) | ||
HKC PN215CT01-1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | FSA, Normally Black, Transmissive | 3000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 7 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9173K | 16.7M (8-bit) | X:0.287; Y:0.291 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 95% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmittance : | 5.1% (Typ.)(with Polarizer) | ||
HKC PN215CT01-1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.8/1.04A (Typ./Max.) | 5.0V (Typ.) | 4.0/5.2W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||

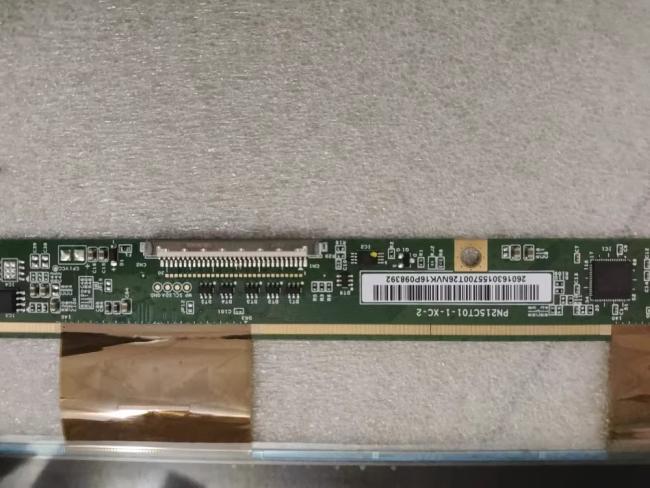

| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| XDYT | 3-10122314-0 | 1 pcs | 1.0 mm | 30 pins | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 487.44(W)×278.182(H)×1.36(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of TBD, utilizing 0.50+0.50 mm mm plate. As a FSA, Normally Black, Transmissive CELL product, PN215CT01-1 can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. PN215CT01-1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz
