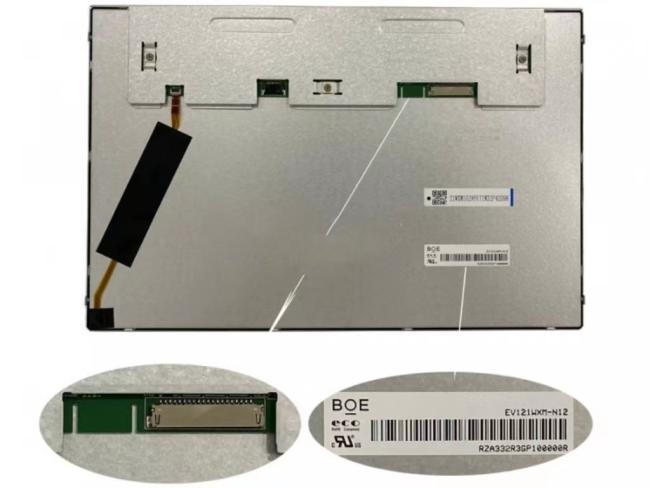

EV121WXM-N12 BOE 12.1" 1280(RGB)×800, 500 cd/m² INDUSTRIAL LCD DISPLAY
BOE EV121WXM-N12 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| EV121WXM-N12 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
BOE EV121WXM-N12 Mechanical Features
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.068×0.204 mm | 0.204×0.204 mm [124PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 261.12×163.2 mm | 264.12×166.2 mm | 277.7×180.6 mm | 8.7±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antiglare (Haze 25%) | ||
BOE EV121WXM-N12 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 80% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
BOE EV121WXM-N12 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 150/180/200mA (Min./Typ./Max.) | 3.3V (Typ.) | 0.5/0.59/0.66W (Min./Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6/8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF19G-20P-1H | 1 pcs | 1.0 mm | 20 pins | ||
BOE EV121WXM-N12 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 4 strings | 12S4P | 50K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 160mA (Typ.) | 38.4/39.6V (Typ./Max.) | 6.14/6.34W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSA24038P6 | 1 pcs | 1.25 mm | 6 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 620mA (Max.) | 12±1.2V | 7.45W (Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 277.7(W)×180.6(H)×9.2(D) mm, viewing area size of 264.12(W)×166.2(H) mm, with surface treament of Antiglare (Haze 25%), net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, EV121WXM-N12 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. EV121WXM-N12 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.
