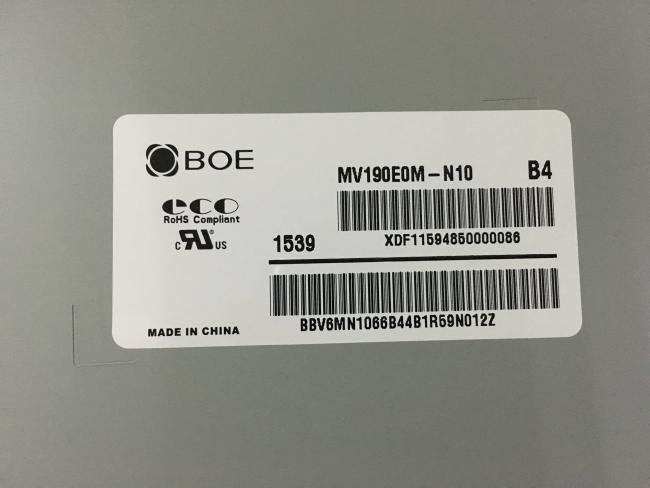

MV190E0M-N10 BOE 19.0" 1280(RGB)×1024, 250 cd/m² INDUSTRIAL LCD DISPLAY
BOE MV190E0M-N10 Application Features
| Basic Information : | Manufacturer | Panel Model 1 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| MV190E0M-N10 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - | ||
| Used For : |
|
|||
BOE MV190E0M-N10 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
BOE MV190E0M-N10 Mechanical Features
| Panel Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×1024 [SXGA] | RGB Vertical Stripe | 0.2928×0.2928 [86PPI] | 0.0976×0.2928 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 374.784(H) × 299.827(V) | 378.8(H) × 303.0(V) | 396(H) × 324(V) | 8.7/10.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.69Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
BOE MV190E0M-N10 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Right side) | 15S2P | 2 strings | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 45±3V | 95mA (Typ.) | 8.55/9.12W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CNAANC | |
BOE MV190E0M-N10 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.6/1.1A (Typ./Max.) | 3.0/5.5W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | IS100-L30R-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 374.784(W)×299.827(H) mm, outline size of 396(W)×324(H)×10.4(D) mm, viewing area size of 378.8(W)×303.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.69Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV190E0M-N10 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 15S2P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV190E0M-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
