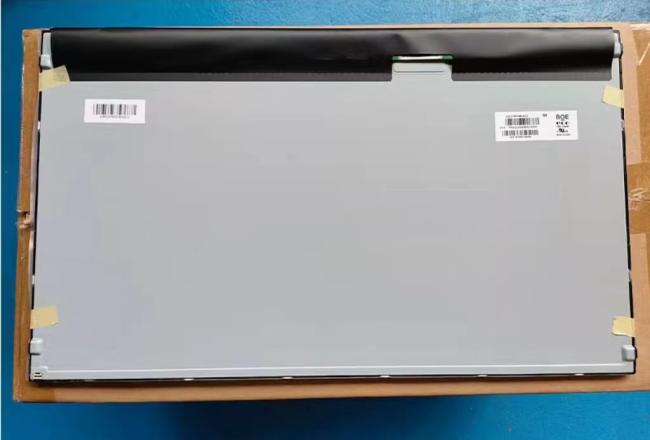

QV215FHM-N10 BOE 21.5" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
BOE QV215FHM-N10 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| QV215FHM-N10 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 50 °C | -20 ~ 60 °C |
BOE QV215FHM-N10 Mechanical Features
| Screen Size : | 21.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.08275×0.24825 mm | 0.24825×0.24825 mm [102PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 476.64×268.11 mm | 479.84×271.3 mm | 495.6×292.2 mm | 8.2/11.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape / Portrait | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.00Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
BOE QV215FHM-N10 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 50K(Min.) | 17S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 42/43.5/46.5V (Min./Typ./Max.) | 65/100mA (Typ./Max.) | 11.4W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | 3707K-Q06N-08X | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
BOE QV215FHM-N10 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5V (Typ.) | 0.7/1.2A (Typ./Max.) | 3.5/5.4W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS100-L30R-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×11.2(D) mm, viewing area size of 479.84(W)×271.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.00Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, QV215FHM-N10 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed. QV215FHM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5V (Typ.).
