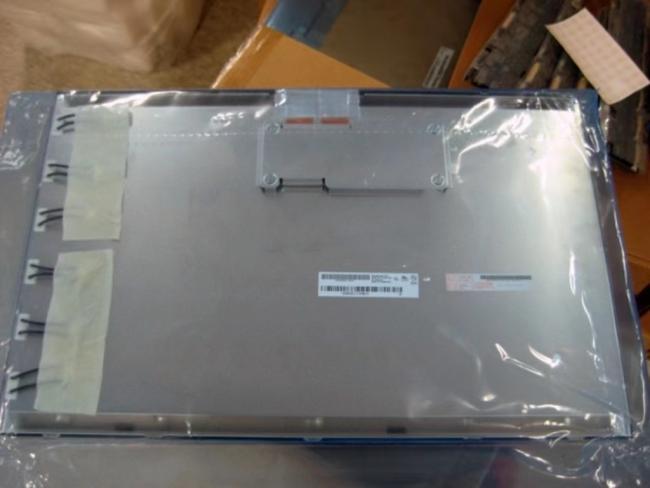

M240UW01 V0 AUO 24.0" 1920(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY
AUO M240UW01 V0 Application Details
| Basic Info : | Panel Brand | Panel Model | M240UW01 V0 | |
|---|---|---|---|---|
| Diagonal Size | 24.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | M240UW01 V.0 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
AUO M240UW01 V0 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1200 [WUXGA] | Dot Pitch | 0.090×0.270 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.270×0.270 mm (H×V) [94PPI] | |
| Mechanical Size : | Display Area | 518.4×324 mm (H×V) | Bezel Area | 522.4×328.0 mm (H×V) |
| Outline Dim. | 546.4×352 mm (H×V) | Outline Depth | 29.0/36.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.72Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO M240UW01 V0 Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 10/6 (Typ.)(Tr/Td), 6 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO M240UW01 V0 Backlight Details
| Back-light Features: | Lamp Shape | U shape | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6 pcs | Position | Direct light type | |
| Lamp Electrical : | Voltage Input | 1690V (Typ.) | Current Input | 2.0/6.0/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/53/60KHz (Min./Typ./Max.) | Kick-off Voltage | 2270/2720V (Min.)(Ta=+25/0℃) | |||
| Consumption | 60.8W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CviLux | CP0404SLN00 | 4.0 mm | 4 pins | 6 pcs | BLL-4PINS-HNNH | |
AUO M240UW01 V0 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.8/2.2A (Typ./Max.) | ||
| Consumption | 9.0/11.0W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-150A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 546.4(W)×352(H)×36.3(D) mm, viewing area size of 522.4(W)×328.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.72Kgs (Typ.). As a AMVA, Normally Black, Transmissive LCM product, M240UW01 V0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/6 (Typ.)(Tr/Td), 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 6 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, external backlight driver is additionally needed. M240UW01 V0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
