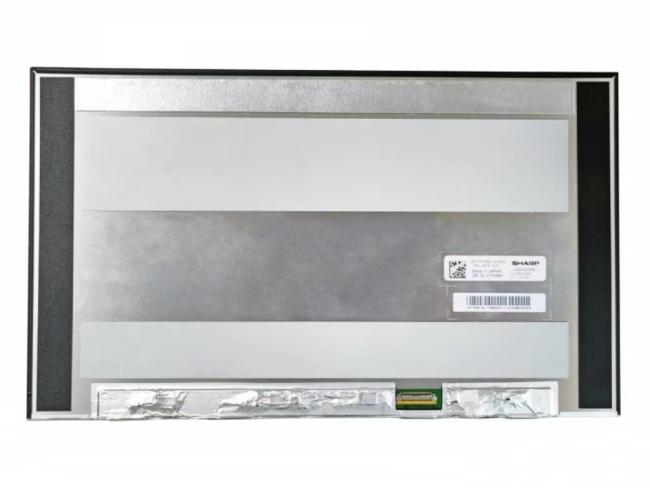

LQ140M1JW39 Sharp 14.0" 1920(RGB)×1080, 89/89/89/89 (Min.)(CR≥10) INDUSTRIAL LCD DISPLAY
Sharp LQ140M1JW39 Application Details
| Basic Detail : | Manufacturer | Model Name | LQ140M1JW39 | |
|---|---|---|---|---|
| Panel Type | Oxide TFT-LCD , LCM | Another Name | LQ0DASD440 | |
| Panel Size | 14.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -25 ~ 60 °C |
Sharp LQ140M1JW39 Optical Details
| Basic Information : | Luminance | - | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | New Mode2, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 16.7M (8-bit) |
Sharp LQ140M1JW39 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0537×0.1611 mm | Pixel Pitch(W×H) | 0.1611×0.1611 mm [157PPI] | |
| Physical Size : | Active Viewing | 309.312(W)×173.988(H) mm | Overall Dim. | - |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | - | Surface | Antiglare |
Sharp LQ140M1JW39 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.312(W)×173.988(H) mm, with surface treament of Antiglare, shape stype of Slim (PCBA Bent, T≤3.0mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ140M1JW39 can provides 1500:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ140M1JW39 utilizes eDP (2 Lanes) as it's signal inputting systerm Connector.
