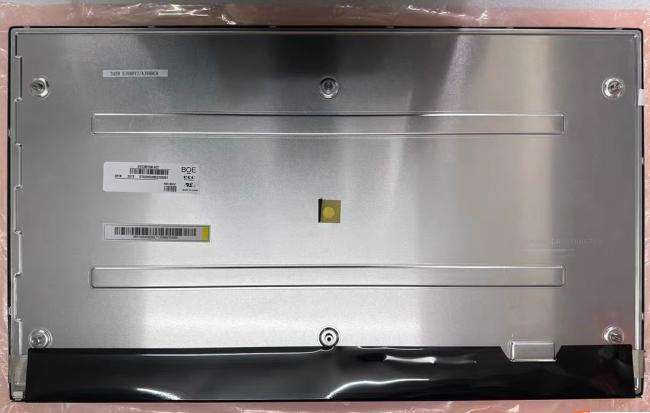

DV238FHM-N11 BOE 23.8" 1920(RGB)×1080, 550 cd/m² INDUSTRIAL LCD DISPLAY
BOE DV238FHM-N11 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| DV238FHM-N11 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
BOE DV238FHM-N11 Mechanical Features
| Panel Size : | 23.8 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0915×0.2745 mm | 0.2745×0.2745 mm [92PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 527.04×296.46 mm | 530.2×299.6 mm | 543×317.4 mm | 8.2/11.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.39Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
BOE DV238FHM-N11 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 550 cd/m² (Typ.) | HADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 99% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
BOE DV238FHM-N11 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 700/900mA (Typ./Max.) | 5.0V (Typ.) | 3.5/4.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS100-L30R-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
BOE DV238FHM-N11 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 4 strings | 4 strings | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 120mA (Typ.) | 48/49.6V (Typ./Max.) | 23.04/23.8W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3708K-Q06N-00L | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H)×11.4(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.39Kgs (Typ.). As a HADS, Normally Black, Transmissive LCM product, DV238FHM-N11 can provides 550 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. DV238FHM-N11 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
