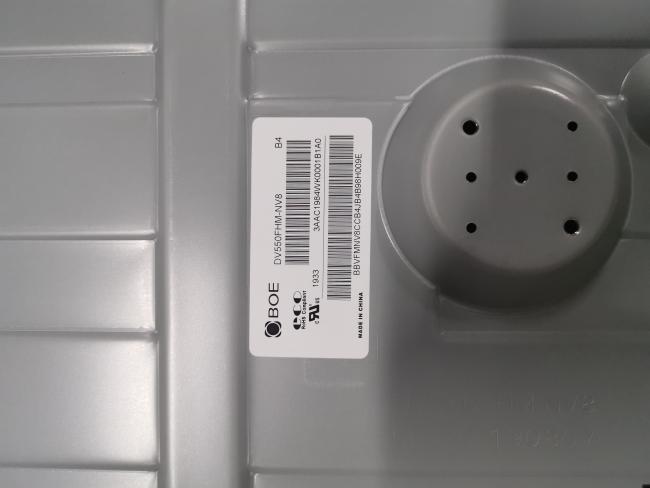

DV550FHM-NV8 BOE 55" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY
BOE DV550FHM-NV8 Application Details
| Basic Information : | Brand | Model | DV550FHM-NV8 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 55" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
BOE DV550FHM-NV8 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.210×0.630 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.630×0.630 (H×V) [40PPI] | |
| Mechanical Size : | Active Area(mm) | 1209.6(H) × 680.4(V) | Bezel Area(mm) | 1210(H) × 680.8(V) |
| Outline Dim.(mm) | 1213.5(H) × 684.3(V) | Depth(mm) | 60±1 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes | |||
| Videowall Seam : | 3.9 mm (Active to Active) | |||
| Other Spec : | Weight | 15.8Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
BOE DV550FHM-NV8 Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 8 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.280; Y:0.293 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 9811K | White Uniformity | 1.18 (Typ.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE DV550FHM-NV8 Interface Details
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 560/950mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.8/11.4W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS050-C51B-C39-S | 1 pcs | 51 pins | 0.5 mm | ||
BOE DV550FHM-NV8 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Direct light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | - | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| CviLux | CI0114M1HR0-NH | 2 pcs | 14 pins | 2.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 24.0±2.4V | Current Supply | 7.0/8.0A (Typ./Max.) | ||
| Consumption | 168/192W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1213.5(W)×684.3(H)×61(D) mm, viewing area size of 1210(W)×680.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 15.8Kgs (Typ.), active_to_active splicing seam 3.9 mm. As a ADS, Normally Black, Transmissive LCM product, DV550FHM-NV8 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type, With LED Driver. DV550FHM-NV8 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
