LTM315FL01 Samsung 32.0" 3840(RGB)×2160, 300 cd/m² INDUSTRIAL LCD DISPLAY
Samsung LTM315FL01 Application Details
| Basic Info : | Panel Brand | Panel Model | LTM315FL01 | |
|---|---|---|---|---|
| Diagonal Size | 32.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
Samsung LTM315FL01 Mechanical Details
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.0605×0.1815 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1815×0.1815 mm (H×V) [139PPI] | |
| Mechanical Size : | Display Area | 696.96×392.04 mm (H×V) | Bezel Area | 700.0×396.0 mm (H×V) |
| Outline Dim. | 724.8×421.9 mm (H×V) | Outline Depth | 18.3 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 4.25±1.00Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Samsung LTM315FL01 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | PLS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 19 (Typ.)(Tr+Td), 15 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.327; Wy:0.332 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 5768K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 80% | sRGB | 98% coverage |
| Adobe RGB | 82% coverage | DCI-P3 | 83% coverage | |
| Rec.2020 | 60% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Samsung LTM315FL01 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings × 2CN | Lamp Type | WLED | Life Time | 40K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 11S4P×2CN | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 31.7/35/38.7V (Min./Typ./Max.) | Current Input | |||
| Consumption | 33.6/40.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104193-0610 | 1.0 mm | 6 pins | 2 pcs | BLE-6PINS-CCCCAN | |
Samsung LTM315FL01 Interface Details
| Signal Systerm : | V-by-One 8 lane | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.3A (Typ.) | ||
| Consumption | 9.0W (Max.) | |||||

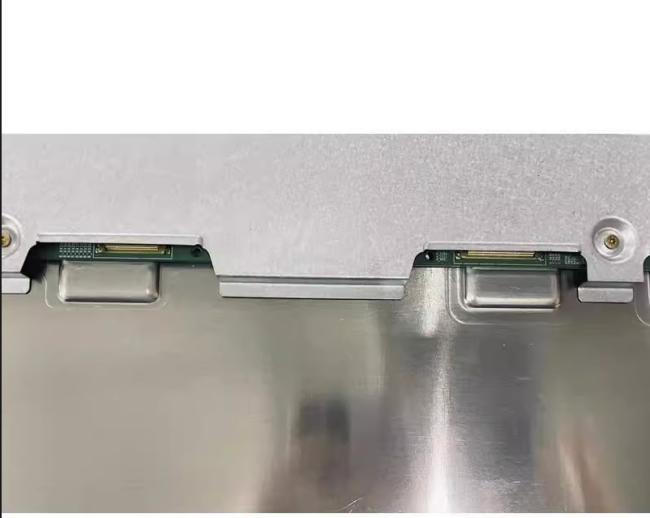

| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-02M | 0.5 mm | 40 pins | 1 pcs | ||
| I-PEX | 20455-030E-02R | 0.5 mm | 30 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 696.96(W)×392.04(H) mm, outline size of 724.8(W)×421.9(H)×18.3(D) mm, viewing area size of 700.0(W)×396.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 4.25±1.00Kgs. As a PLS, Normally Black, Transmissive LCM product, LTM315FL01 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 19 (Typ.)(Tr+Td), 15 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 97% (sRGB). This product adopted 11S4P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. LTM315FL01 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 70 pins Connector with power supply voltage of 5.0V (Typ.)
