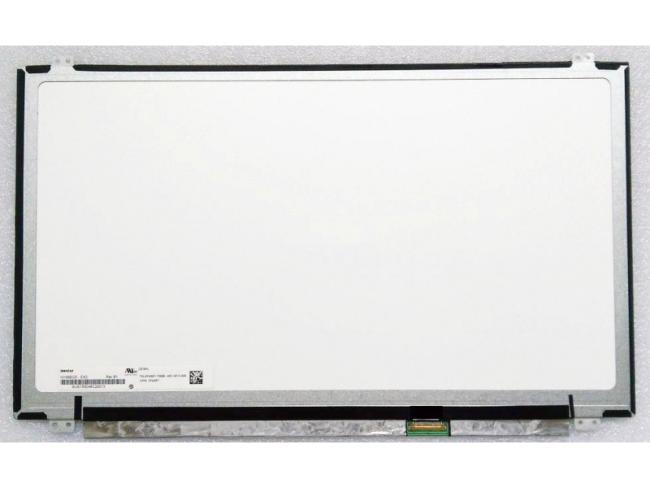

NV156FHM-NY1 BOE 15.6" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY
BOE NV156FHM-NY1 Application Details
| Basic Info : | Panel Brand | Panel Model | NV156FHM-NY1 | |
|---|---|---|---|---|
| Diagonal Size | 15.6" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | BOE085C | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
BOE NV156FHM-NY1 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.05975×0.17925 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.17925 mm (H×V) [141PPI] | |
| Mechanical Size : | Display Area | 344.16×193.59 mm (H×V) | Bezel Area | - |
| Outline Dim. | 350.66×216.25 mm (H×V) | Outline Depth | 2.45/2.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 300g (Max.) | Surface | Antiglare (Haze 25%) |
BOE NV156FHM-NY1 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | HADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 16.4 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.49 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 94% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV156FHM-NY1 Backlight Details
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6 strings | Position | Edge light type (Bottom side) | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 3.78W (Max.) | |||||
BOE NV156FHM-NY1 Interface Details
| Signal Systerm : | eDP (2 Lanes), HBR2 (5.4G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 576mA (Typ.) | ||
| Consumption | 1.9W (Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020Q | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×216.25(H)×2.6(D) mm, with surface treament of Antiglare (Haze 25%), net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a HADS, Normally Black, Transmissive LCM product, NV156FHM-NY1 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16.4 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 6 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV156FHM-NY1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
