LA084X01-SL01 LG Display 8.4" 1024(RGB)×768, 170.496(W)×127.872(H) mm INDUSTRIAL LCD DISPLAY
LG Display LA084X01-SL01 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LA084X01-SL01 | a-Si TFT-LCD , LCM | LA084X01 (SL)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 75 °C | -40 ~ 95 °C | 2.0G (19.6 m/s²) |
LG Display LA084X01-SL01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1100 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 16.7M (8-bit) |
LG Display LA084X01-SL01 Mechanical Features
| Panel Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.1665×0.1665 [152PPI] | 0.0555×0.1665 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 170.496(H) × 127.872(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||

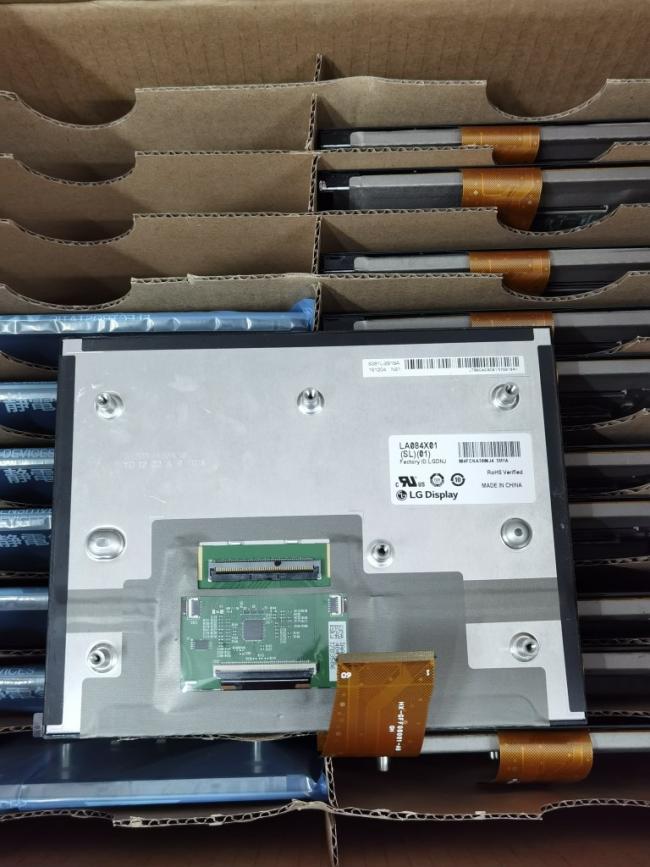

| Mounting : | Rear mounting Pole (6 pcs) | |||
LG Display LA084X01-SL01 Electronics Features
| Reverse Scan : | Yes (L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm. As a IPS, Normally Black, Transmissive LCM product, LA084X01-SL01 can provides 1100:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. It's typical vertical frame rate (Fv) is 60Hz
