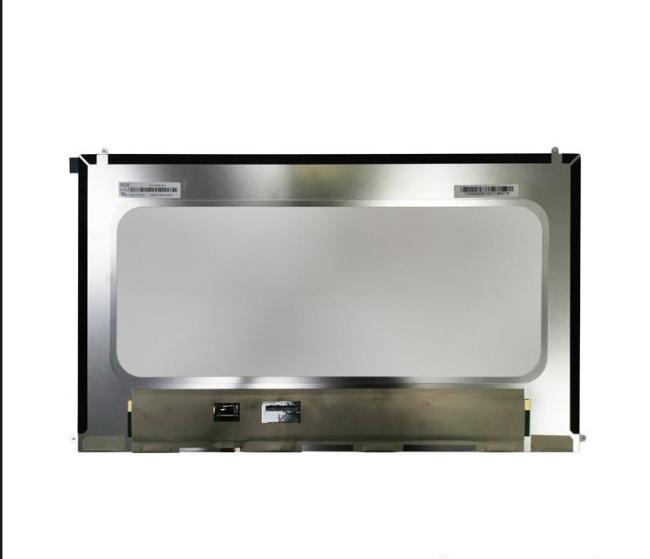

EV173FHM-N81 BOE 17.3" 1920(RGB)×1080, 480 cd/m² INDUSTRIAL LCD DISPLAY
BOE EV173FHM-N81 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| EV173FHM-N81 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
BOE EV173FHM-N81 Mechanical Features
| Panel Size : | 17.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0663×0.1989 mm | 0.1989×0.1989 mm [127PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 381.888×214.812 mm | - | - | 3.2 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4 pcs) on left, right, up slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 520g (Max.) | Antiglare (Haze 25%) | ||
BOE EV173FHM-N81 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 480 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 16 (Typ.)(Tr+Td); (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 94% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(9 points) | ||
BOE EV173FHM-N81 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 363/726mA (Typ./Max.) | 3.3V (Typ.) | 1.2/2.4W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (2 Lanes), eDP1.2 | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | FH34SRJ-45S-0.5SH(50) | 1 pcs | 0.5 mm | 45 pins | ||
BOE EV173FHM-N81 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 21mA (Typ.) | 22.8/24V (Typ./Max.) | 6.02/6.34W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | No | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 520g (Max.). As a ADS, Normally Black, Transmissive LCM product, EV173FHM-N81 can provides 480 cd/m² display brightness 1100:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td); ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. EV173FHM-N81 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.).
