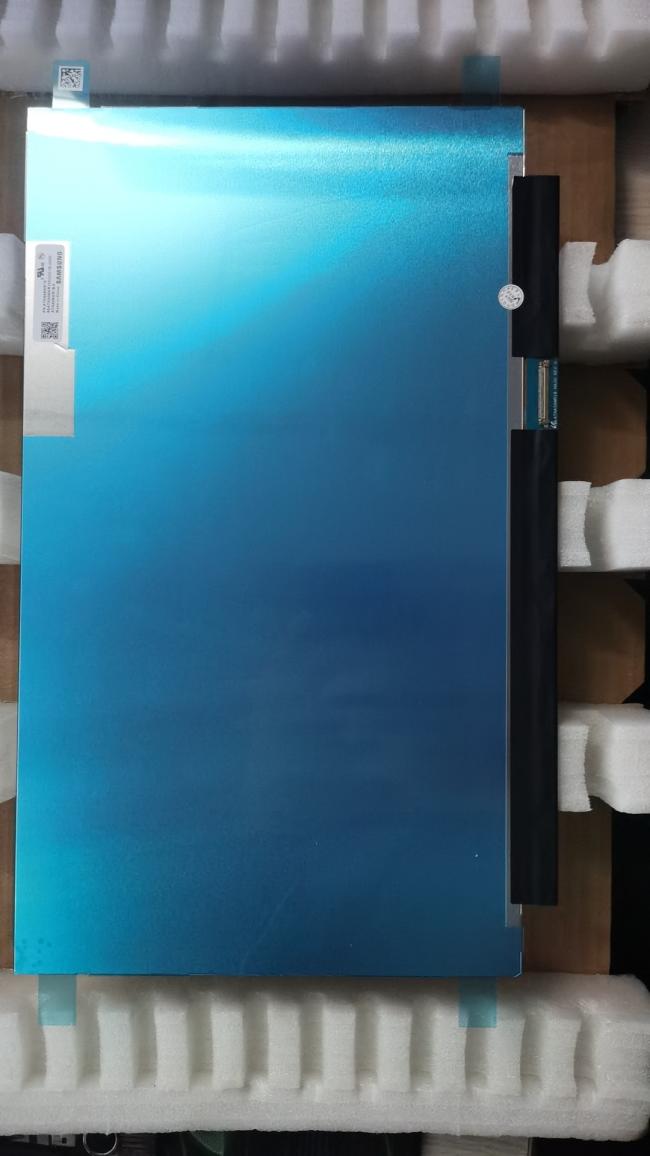

ATNA56WR18 ATNA56WR18 15.6" 3840(RGB)×2160, 440 cd/m² INDUSTRIAL LCD DISPLAY
Samsung ATNA56WR18 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| ATNA56WR18 | AM-OLED , OLED | SDC415F | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -40 ~ 85 °C |
Samsung ATNA56WR18 Mechanical Features
| Screen Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.02988×0.08964 mm | 0.08964×0.08964 mm [283PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 344.218×193.622 mm | - | 348.218×215.662 mm | 1.38/2.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape / Portrait | Slim (PCBA Flat, T≤3.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 200g (Max.) | - | Glare (Haze 0%) | ||
Samsung ATNA56WR18 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 440 cd/m² (Typ.) | - | 100000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 1 (Typ.)(Tr+Tf) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 1.06B (8-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 107% | 100% | 97% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 100% | 80% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.18/1.33 (Typ./Max.)(13 points) | ||
Samsung ATNA56WR18 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 573±86mA | 1.9±0.3W | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes), eDP1.4b, HBR2 (5.4G/lane) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-040E-02 | 1 pcs | 40 pins | 0.5 mm | ||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 348.218(W)×215.662(H)×2.9(D) mm, with surface treament of Glare (Haze 0%), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). ATNA56WR18 can provides 440 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA56WR18 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
