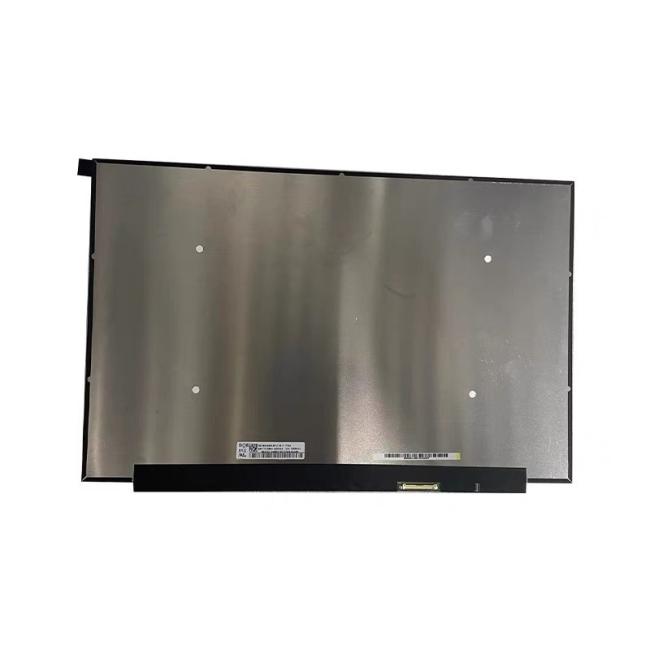

M120NN42 R0 IVO 12.0" 2160(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY
IVO M120NN42 R0 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| M120NN42 R0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
IVO M120NN42 R0 Mechanical Features
| Panel Size : | 12.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2160(RGB)×1440 | RGB Vertical Stripe | 0.0392×0.1176 mm | 0.1176×0.1176 mm [215PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 254.016×169.344 mm | - | 263.12×181.91 mm | 2.15/4.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:10 (W : H) | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 175g (Max.) | Glare (Haze 0%), Hard coating (3H) | ||
IVO M120NN42 R0 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 95% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.67 (Max.)(5/13 points) | ||
IVO M120NN42 R0 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.6/2.88W (Typ./Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 254.016(W)×169.344(H) mm, outline size of 263.12(W)×181.91(H)×4.4(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 175g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, M120NN42 R0 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. M120NN42 R0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
