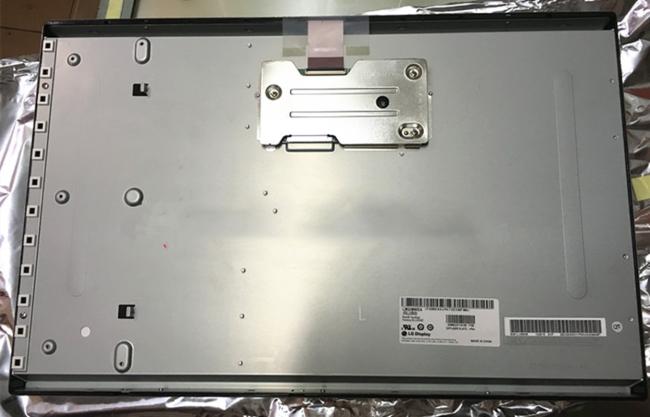

EV220WPB-N10 BOE 22.0" 1680(RGB)×1050, 350 cd/m² INDUSTRIAL LCD DISPLAY
BOE EV220WPM-N10 Application Details
| Basic Info : | Panel Brand | Panel Model | EV220WPM-N10 | |
|---|---|---|---|---|
| Diagonal Size | 22.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
BOE EV220WPM-N10 Mechanical Details
| Pixel Features : | Pixel Format | 1680(RGB)×1050 [WSXGA+] | Dot Pitch | 0.094×0.282 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.282×0.282 mm (H×V) [90PPI] | |
| Mechanical Size : | Display Area | 473.76×296.1 mm (H×V) | Bezel Area | 477.7×300.1 mm (H×V) |
| Outline Dim. | 493.7×320.1 mm (H×V) | Outline Depth | 10.9/16.35 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | TBD | Surface | Antiglare (Haze 25%) |
BOE EV220WPM-N10 Optical Details
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | HADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.307; Wy:0.326 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6846K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 80% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE EV220WPM-N10 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MS24049HJ | 1.25 mm | 9 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 8/12/21V (Min./Typ./Max.) | Current Input | 1.47A (Typ.) | ||
| Consumption | 17.68W (Typ.) | |||||
BOE EV220WPM-N10 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | TBD | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 473.76(W)×296.1(H) mm, outline size of 493.7(W)×320.1(H)×16.35(D) mm, viewing area size of 477.7(W)×300.1(H) mm, with surface treament of Antiglare (Haze 25%), net weight of TBD. As a HADS, Normally Black, Transmissive LCM product, EV220WPM-N10 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. EV220WPM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
