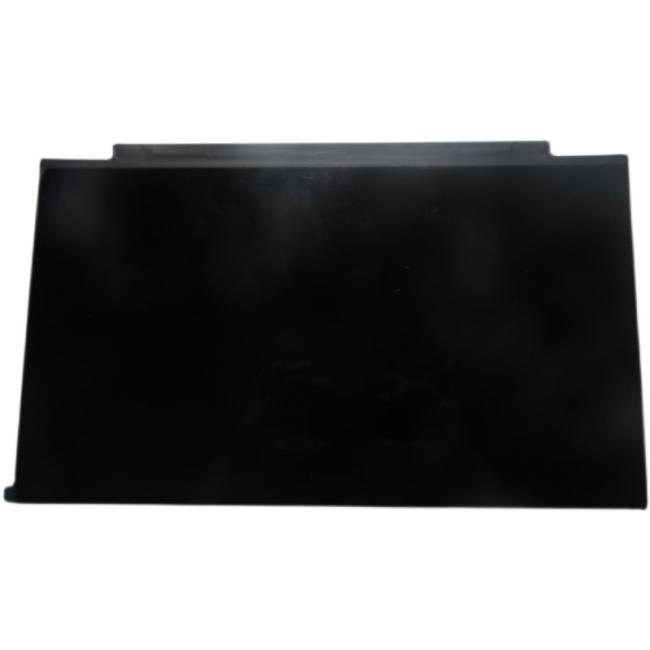

MNF601CA1-3 CSOT 15.6" 2560(RGB)×1440, 350 cd/m² INDUSTRIAL LCD DISPLAY

 whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.22(W)×193.62(H) mm, outline size of 350.66(W)×214.72(H)×2.6(D) mm, with surface treament of Antiglare, Reflection 6.5% (Max.), net weight of 290g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a FFS, Normally Black, Transmissive LCM product, MNF601CA1-3 can provides 350 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10 (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. MNF601CA1-3 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V
