HR230WU1-400 BOE 23.0" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

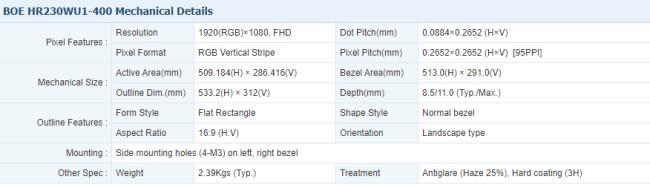

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 509.184(W)×286.416(H) mm, outline size of 533.2(W)×312(H)×11(D) mm, viewing area size of 513.0(W)×291.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.39Kgs (Typ.). As a FFS, Normally Black, Transmissive LCM product, HR230WU1-400 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. HR230WU1-400 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
