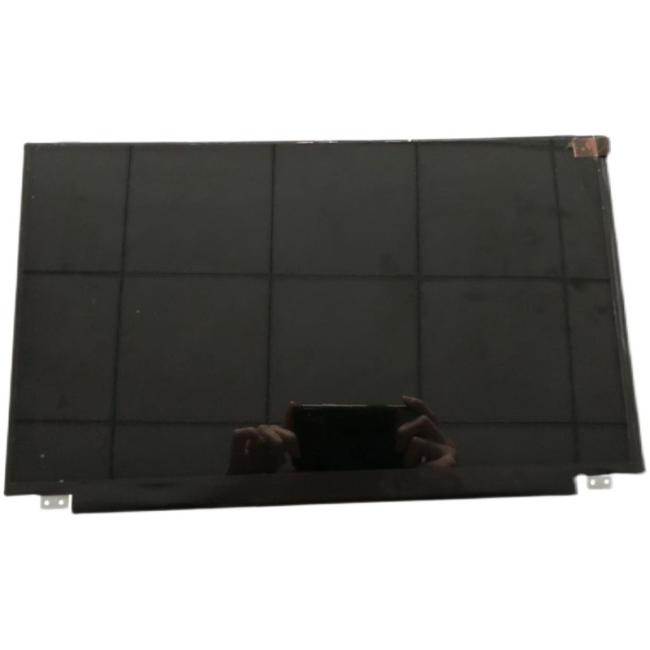

LQ173M1JW12 Sharp 17.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

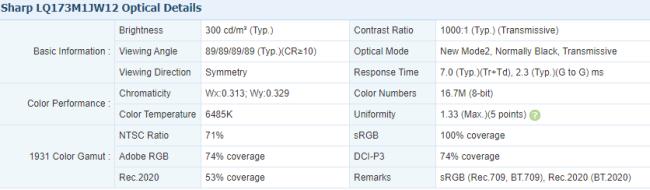

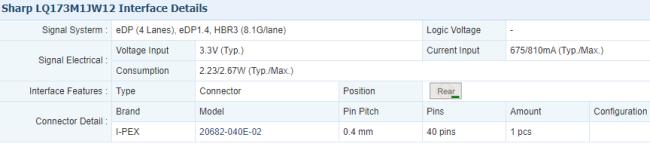

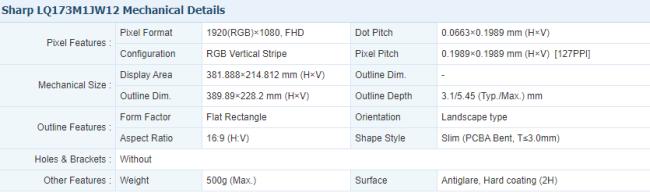

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 389.89(W)×228.2(H)×5.45(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 500g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ173M1JW12 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7.0 (Typ.)(Tr+Td), 2.3 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ173M1JW12 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
