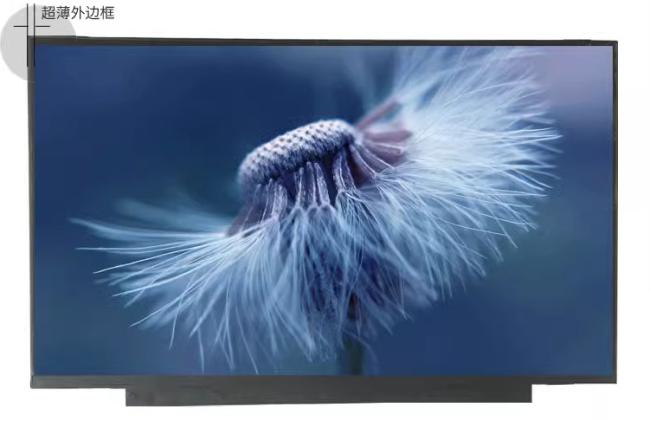

NE160QDM-NY1 BOE 16.0" 2560(RGB)×1600, 500 cd/m² INDUSTRIAL LCD DISPLAY
BOE NE160QDM-NY1 Application Details
| Basic Info : | Panel Brand | Panel Model | NE160QDM-NY1 | |
|---|---|---|---|---|
| Diagonal Size | 16.0" | Application |
|
|
| Panel Type | Oxide TFT-LCD , LCM | Model Alias | BOE0985 BOE0990 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
BOE NE160QDM-NY1 Mechanical Details
| Pixel Features : | Pixel Format | 2560(RGB)×1600 [WQXGA] | Dot Pitch | 0.04488×0.13464 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.13464×0.13464 mm (H×V) [188PPI] | |
| Mechanical Size : | Display Area | 344.678×215.424 mm (H×V) | Bezel Area | - |
| Outline Dim. | 349.68×224.42 mm (H×V) | Outline Depth | 2.45/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 312g (Max.) | Surface | Antiglare, Hard coating (3H) |
BOE NE160QDM-NY1 Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.06B (8-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NE160QDM-NY1 Backlight Details
| Back-light Features: | Lamp Shape | 8 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 10S8P | Position | Edge light type | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5/12/21V (Typ./Max.) | Current Input | 398.3mA (Max.) | ||
| Consumption | 4.78W (Max.) | |||||
BOE NE160QDM-NY1 Interface Details
| Signal Systerm : | eDP (4 Lanes), eDP1.4, HBR3 (8.1G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 561mA (Max.) | ||
| Consumption | 1.85/2.0W (Max.)(OD OFF/OD ON) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P40 | 0.5 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 312g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE160QDM-NY1 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (sRGB). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE160QDM-NY1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
