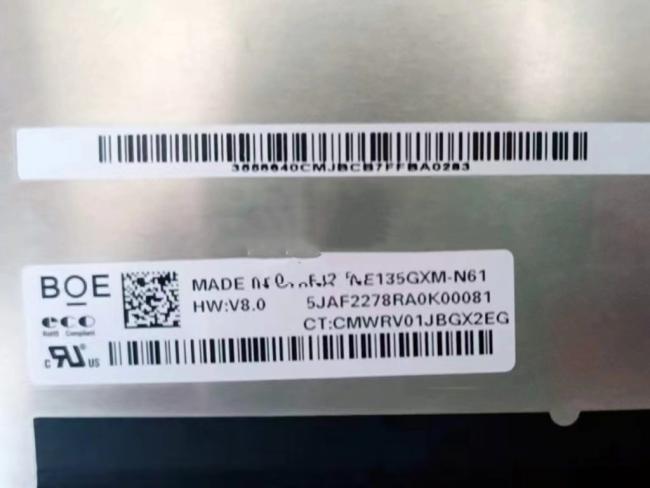

NE135GXM-N61 BOE 13.5" 2256(RGB)×1504 400 cd/m² INDUSTRIAL LCD DISPLAY
BOE NE135GXM-N61 Application Details
| Basic Info : | Panel Brand | Panel Model | NE135GXM-N61 | |
|---|---|---|---|---|
| Diagonal Size | 13.5" | Application | ||
| Panel Type | Oxide TFT-LCD , LCM | Model Alias | BOE0A76 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
BOE NE135GXM-N61 Mechanical Details
| Pixel Features : | Pixel Format | 2256(RGB)×1504 | Dot Pitch | 0.0421×0.1263 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1263×0.1263 mm (H×V) [201PPI] | |
| Mechanical Size : | Display Area | 284.933×189.955 mm (H×V) | Bezel Area | - |
| Outline Dim. | 289.93×200.91 mm (H×V) | Outline Depth | 2.0/3.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 200g (Max.) | Surface | Antiglare, Hard coating (3H) |
BOE NE135GXM-N61 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NE135GXM-N61 Backlight Details
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 9S6P | Position | Edge light type (Bottom side) | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 2.8W (Max.) | |||||
BOE NE135GXM-N61 Interface Details
| Signal Systerm : | eDP (4 Lanes), eDP1.4b, HBR1 (2.7G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.0V (Typ.) | Current Input | 181.8mA (Max.) | ||
| Consumption | 0.6W (Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P40G | 0.5 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 284.933(W)×189.955(H) mm, outline size of 289.93(W)×200.91(H)×3.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE135GXM-N61 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE135GXM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.0V (Typ.).
