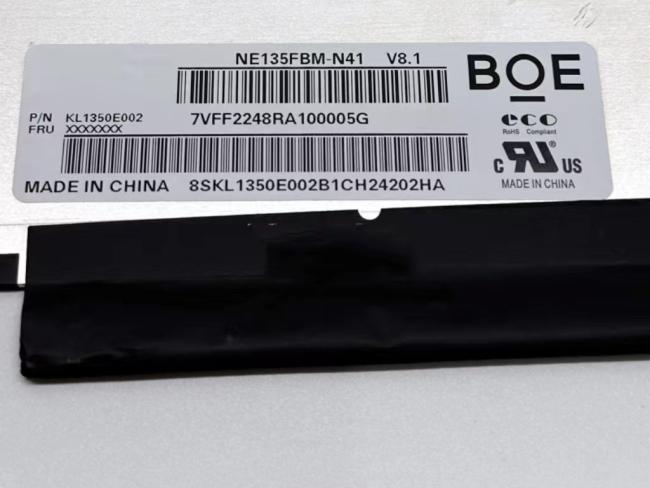

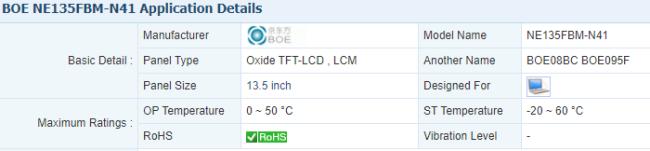

NE135FBM-N41 BOE 13.5" 2256(RGB)×1504  415 cd/m² INDUSTRIAL LCD DISPLAY

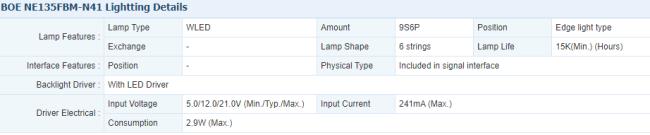

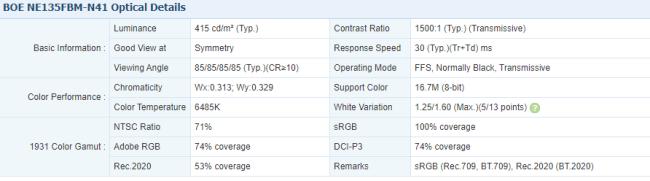

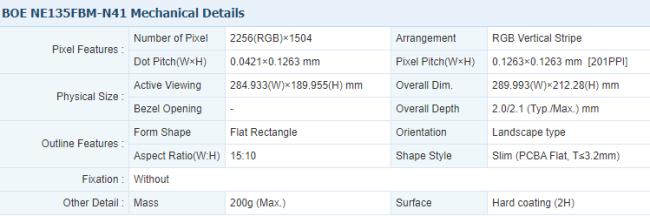

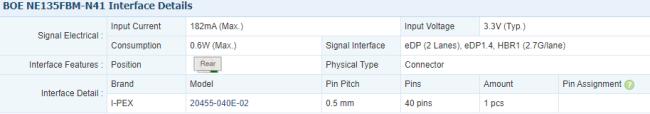

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 284.933(W)×189.955(H) mm, outline size of 289.993(W)×212.28(H)×2.1(D) mm, with surface treament of Hard coating (2H), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a FFS, Normally Black, Transmissive LCM product, NE135FBM-N41 can provides 415 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE135FBM-N41 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
