ST9751D01-4 CSOT 98" 3840(RGB)×2160, 0 cd/m² INDUSTRIAL LCD DISPLAY
CSOT ST9751D01-4 Application Details
| Basic Info : | Panel Brand | Panel Model | ST9751D01-4 | |
|---|---|---|---|---|
| Diagonal Size | 98" | Application | ||
| Panel Type | a-Si TFT-LCD , CELL | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
CSOT ST9751D01-4 Mechanical Details
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.1874×0.5622 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.5622×0.5622 mm (H×V) [45PPI] | |
| Mechanical Size : | Display Area | 2158.85×1214.35 mm (H×V) | Bezel Area | - |
| Outline Dim. | 2171.85×1229.85 mm (H×V) | Outline Depth | 1.3 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Plate Thickness | 0.50+0.50 mm | |
| Other Features : | Weight | 7.95Kgs (Typ.) | Surface | Antiglare (Haze 2%), Hard coating (3H) |
CSOT ST9751D01-4 Optical Details
| Basic Information : | Brightness | 0 cd/m² | Contrast Ratio | 6000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | HVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 6.5 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.268; Wy:0.282 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 12143K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmittance | 6.0% (Typ.) |

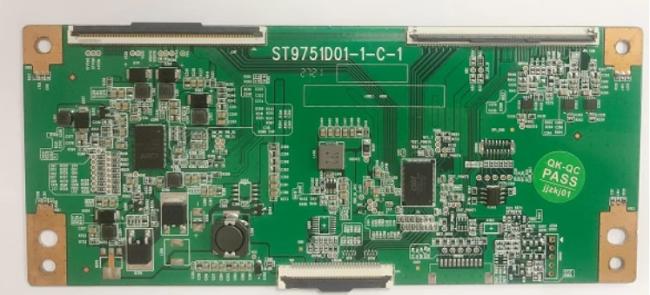

CSOT ST9751D01-4 Interface Details
| Signal Systerm : | V-by-One 16 lane | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12V (Typ.) | Current Input | 1.3/1.69A (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CT | F05035-51P-K | 0.5 mm | 51 pins | 1 pcs | ||
| CT | F05035-41P-K | 0.5 mm | 41 pins | 1 pcs | ||
| YEONHO | 20037WR-H05 | 2.0 mm | 5 pins | 1 pcs | ||
CSOT ST9751D01-4 Carton Details
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Box | 9 | 4 | 2469×1605×168 | 90.00 | 0.6657 | |
| Pallet | 45 | 5 | 2509×1645×970 | 500.00 | 4.0035 |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 2158.85(W)×1214.35(H) mm, outline size of 2171.85(W)×1229.85(H)×1.3(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 7.95Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST9751D01-4 can provides 6000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product have no backlight. ST9751D01-4 utilizes V-by-One 16 lane as it's signal inputting systerm, which connected by 97 pins Connector with power supply voltage of 12V (Typ.)
