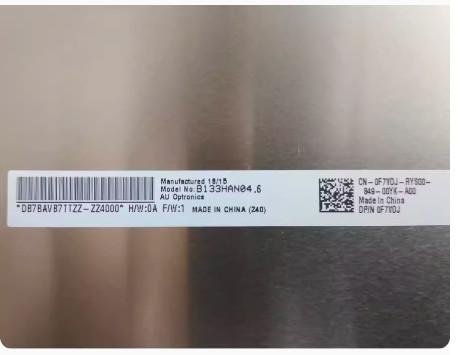

B133HAN04.6 AUO 13.3" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

 whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.472(W)×165.078(H) mm, outline size of 299.972(W)×177.48(H)×4.35(D) mm, with surface treament of Antiglare, net weight of 220g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B133HAN04.6 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B133HAN04.6 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
