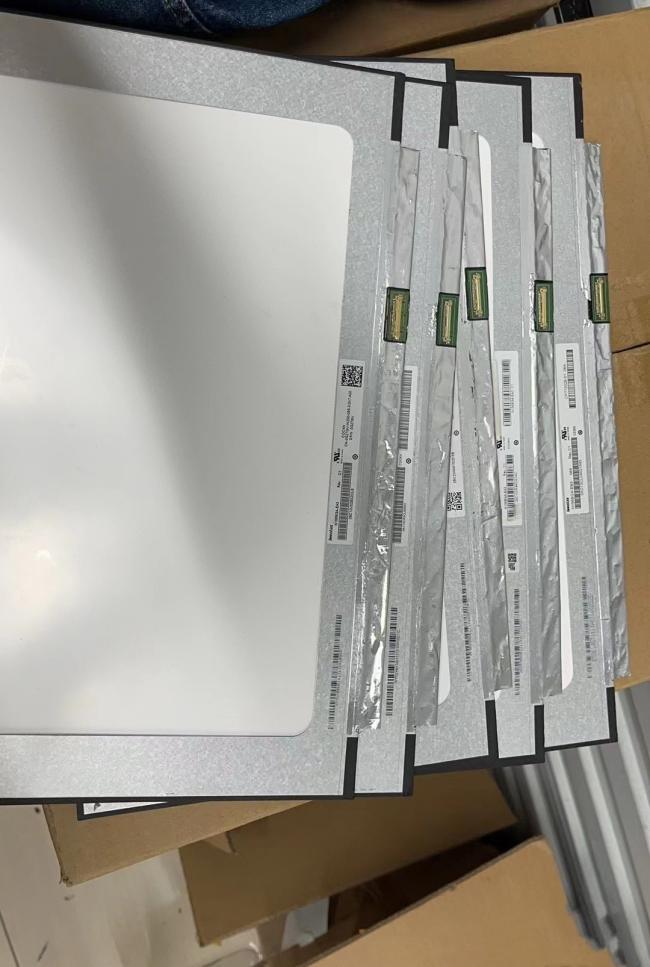

LP156WF9-SPN1 LG Display 15.6" 1920(RGB)×1080, 300 (cd/m²) INDUSTRIAL LCD DISPLAY
LG Display LP156WF9-SPN1 Application Details
| Basic Detail : | Manufacturer | Model Name | LP156WF9-SPN1 1 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LP156WF9 (SP)(N1), LGD05A8 | |
| Panel Size | 15.6 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.0G (9.8 m/s²) |
LG Display LP156WF9-SPN1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] | |
| Physical Size : | Active Viewing | 344.16(W)×193.59(H) mm | Overall Dim. | 350.66(W)×205.8(H) mm |
| Bezel Opening | - | Overall Depth | 1.9/4.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Face mounting holes (4 pcs) on up slugs | |||
| Other Detail : | Mass | 209g (Max.) | Surface | Glare (Haze 0%) |
LG Display LP156WF9-SPN1 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LP156WF9-SPN1 Interface Details
| Signal Electrical : | Input Current | 180/198mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.59/0.65W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | KN38B-30S-0.5H | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A | |
LG Display LP156WF9-SPN1 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 365/375mA (Typ./Max.) | Input Voltage | 6.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 4.4/4.5W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×205.8(H)×4.4(D) mm, with surface treament of Glare (Haze 0%), net weight of 209g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP156WF9-SPN1 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LP156WF9-SPN1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
